ArmPi Intelligent Vision Robotic Arm

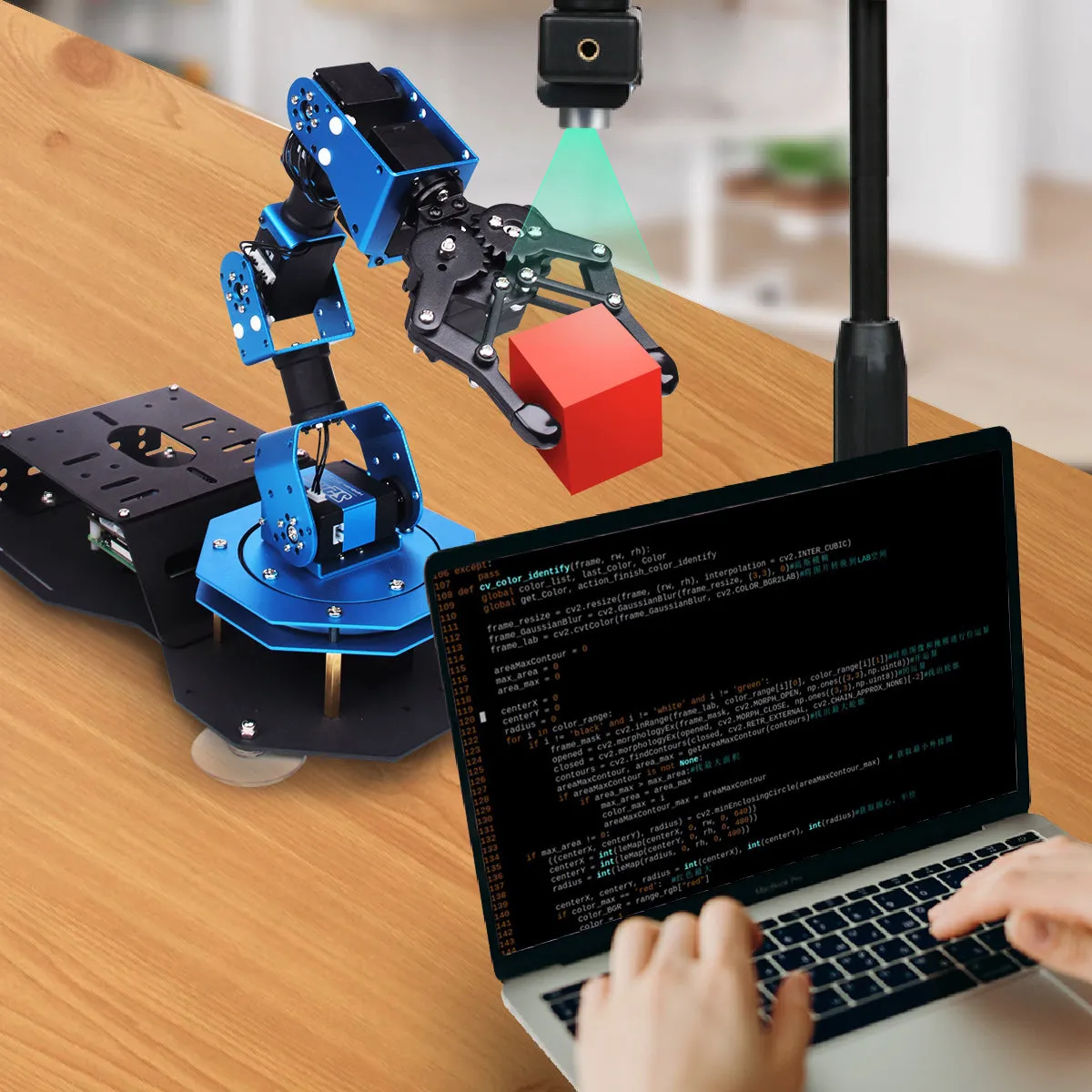

The intelligent vision ArmPi is powered by Raspberry Pi 4B. With built-in inverse kinematics algorithm and a HD camera, ArmPi can sort color blocks, track and grab, and stack blocks intelligently. ArmPi helps you to learn more about machine vision, OpenCV, inverse kinematics algorithms and etc. Abundant awesome ideas are waiting for you to have a try.
The intelligent vision ArmPi is powered by Raspberry Pi 4B. With built-in inverse kinematics algorithm and a HD camera, ArmPi can sort color blocks, track and grab, and stack blocks intelligently. Abundant awesome ideas are waiting for you to to have a try.
Feature
  • The robot kit includes the Raspberry Pi 4B controller board.
  • AI/Python Programming/OpenCV/
    Machine Vision.
  • AI/Python Programming/
    OpenCV/Machine Vision.
  • AI/Python Programming/OpenCV/Machine Vision.
  • AI/Python Programming/OpenCV/Machine Vision.
  • Provide Python Open Source Code and Inverse Kinematics Algorithm.

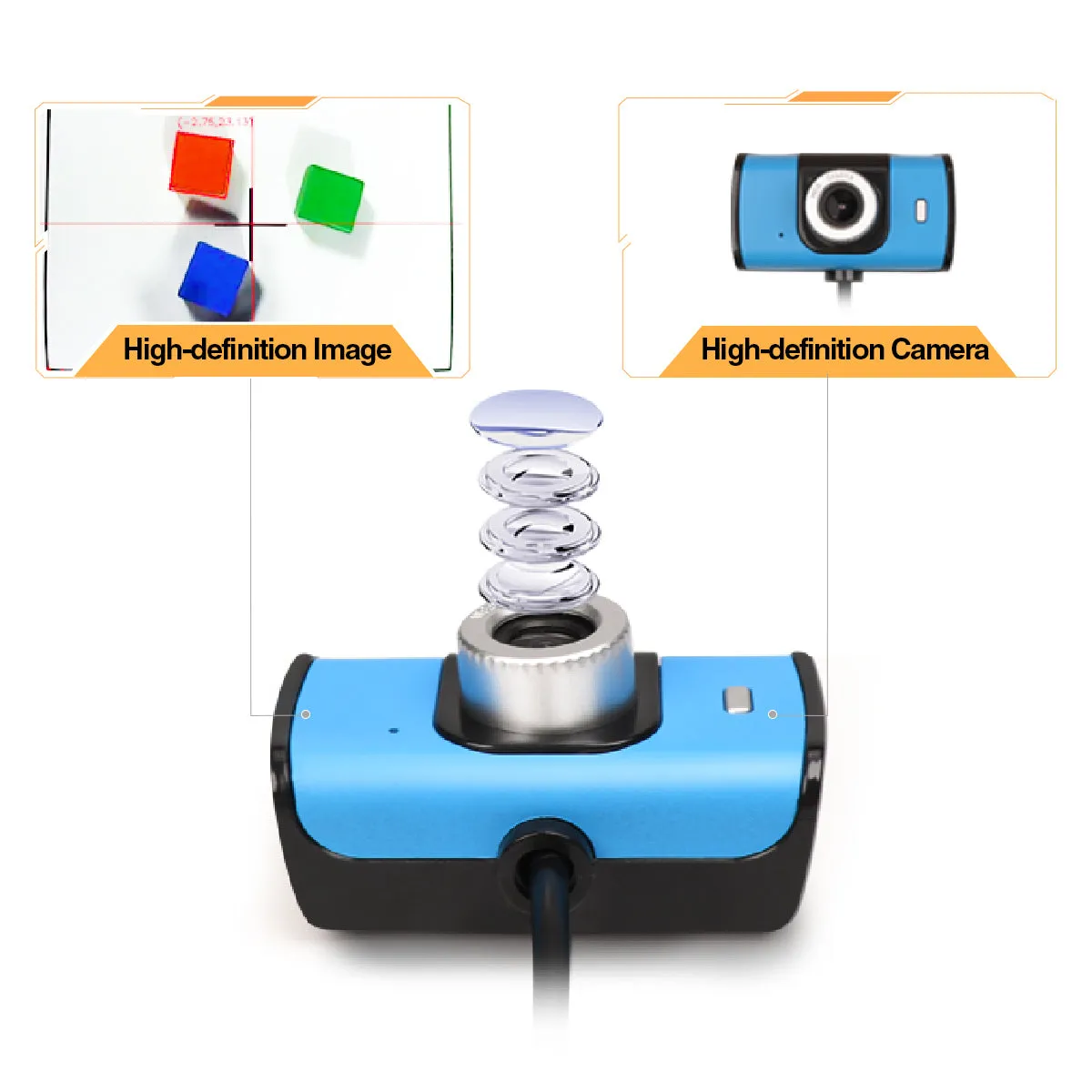

  • Installed HD camera to catch real-time image.
  • Intelligent serial bus servo with high precision, data feedback and friendly wiring.
  • Support PC software, phone App and VNC remote desktop control.

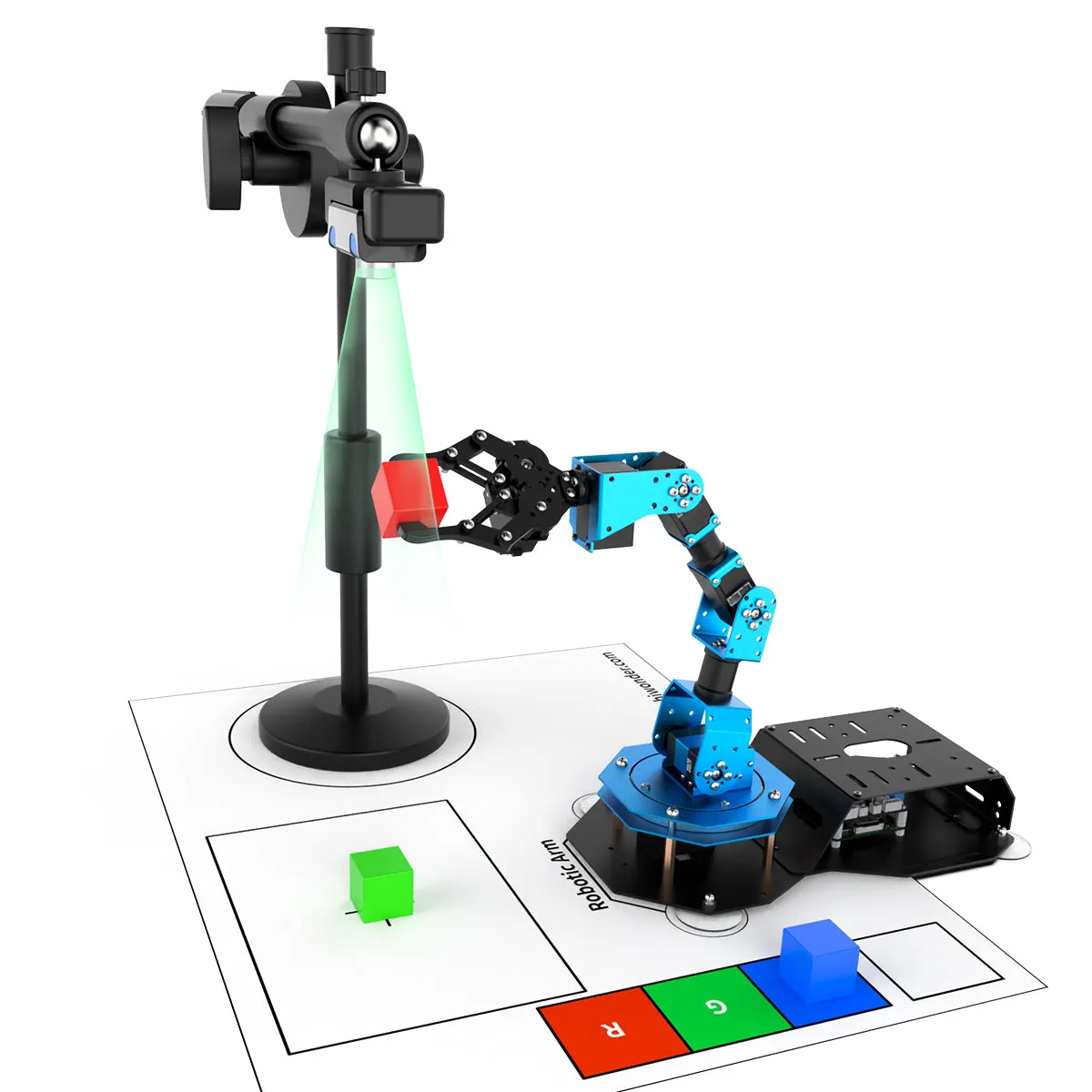

Intelligent Color Sorting
With the help of the camera, ArmPi can exact and recognize color to sort the blocks intelligently.
Color Tracking and Grabbing
ArmPi uses AI vision algorithms to locate the position and track the block with inverse kinematics. Then grab and place it to corresponding area.

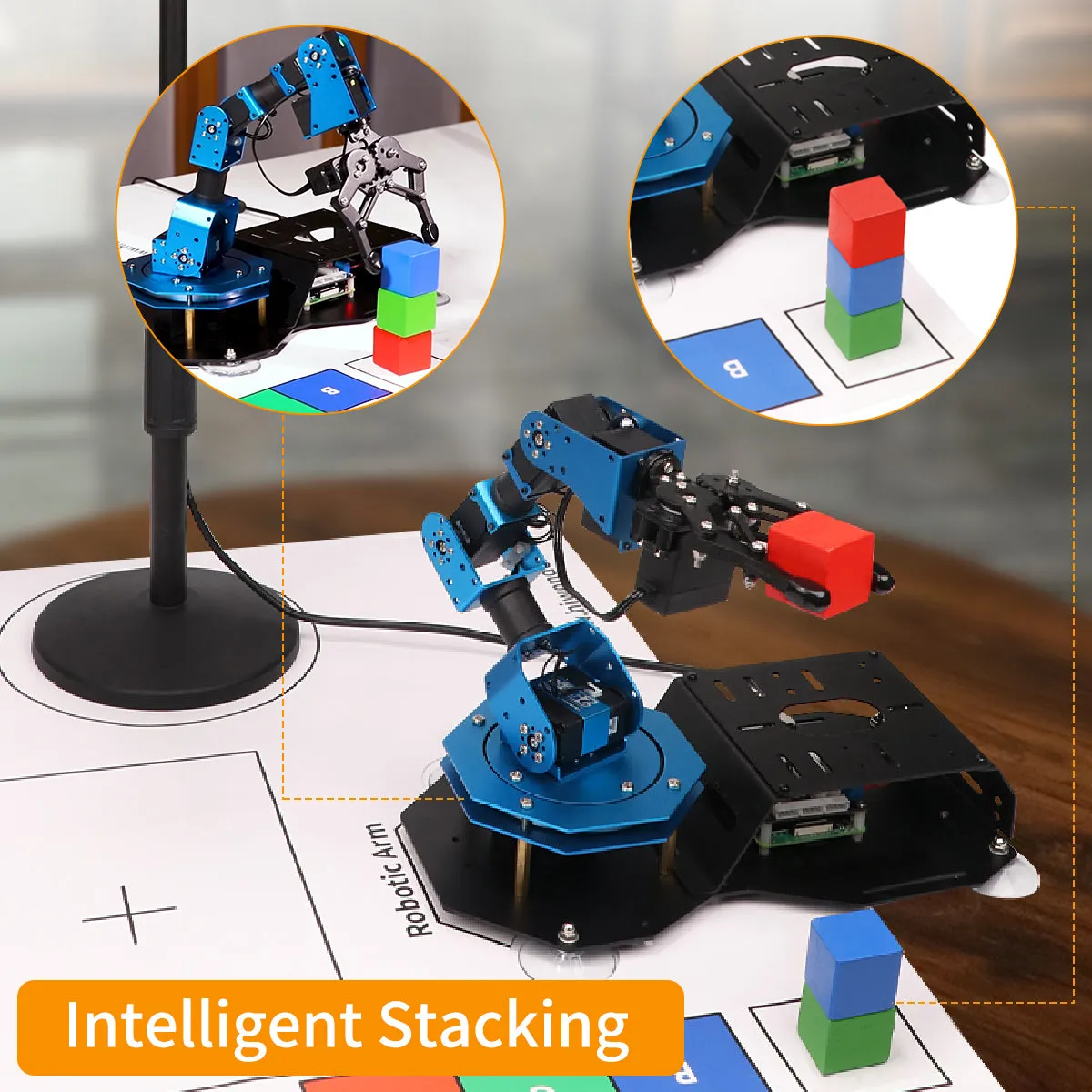

Intelligent Stacking
With OpenCV and inverse kinematics, Raspberry Pi controller calculates rotated angle to grab and stack blocks in setting area.

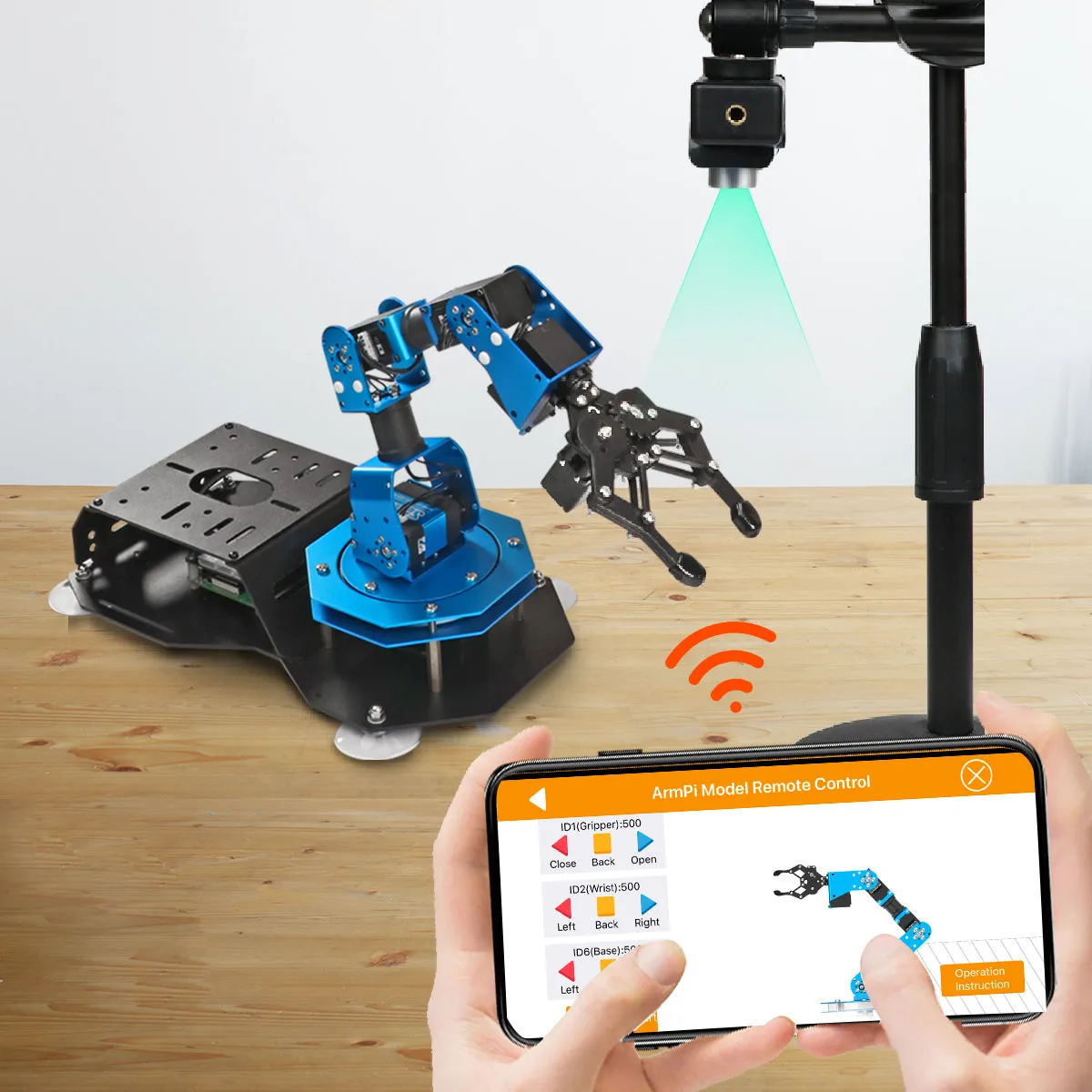

ArmPi Model Control
In the APP interface, you can drag the robotic joints and the buttons to run the ArmPi easily!
VNC Remote Desktop Control

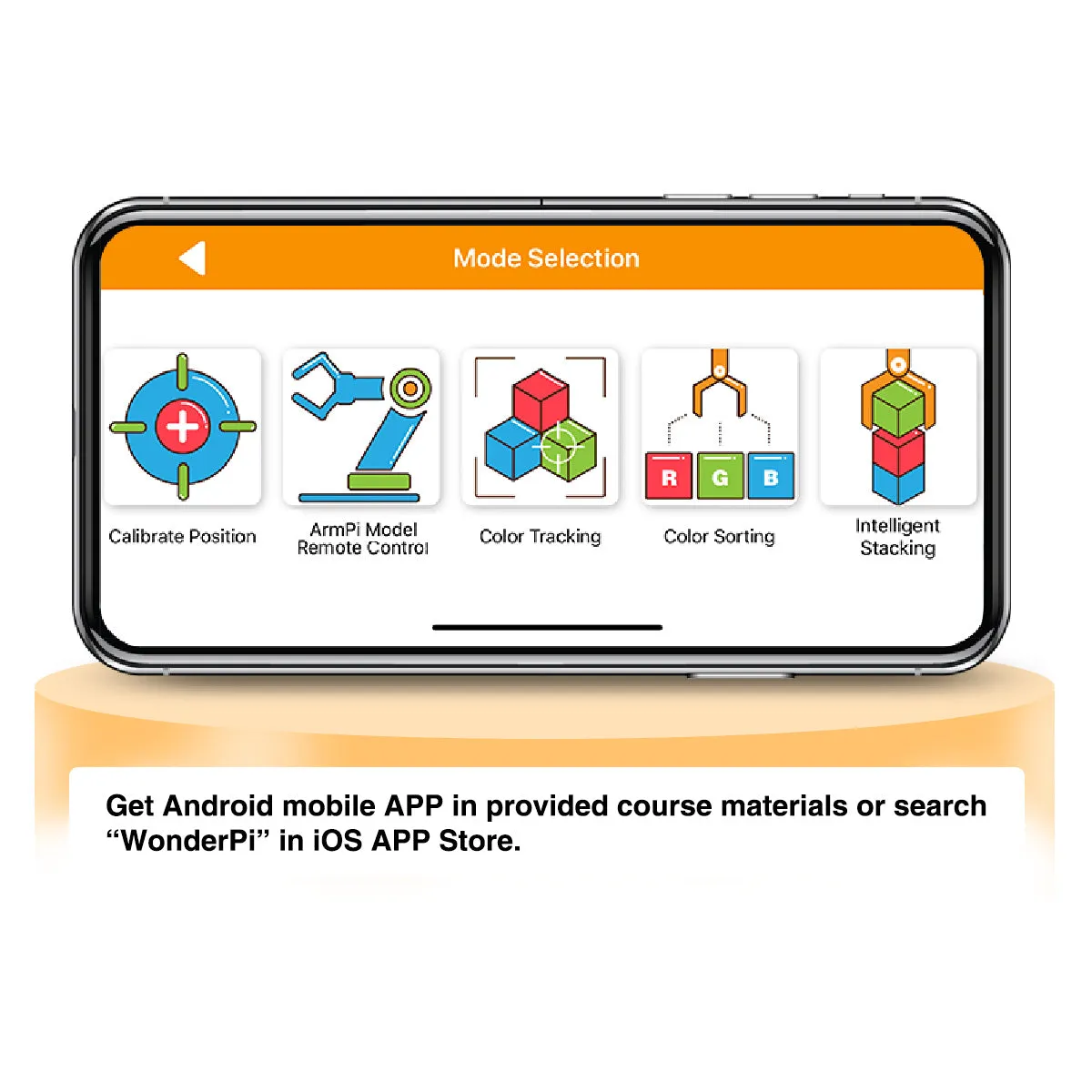

Android/ iOS Smart Phone APP

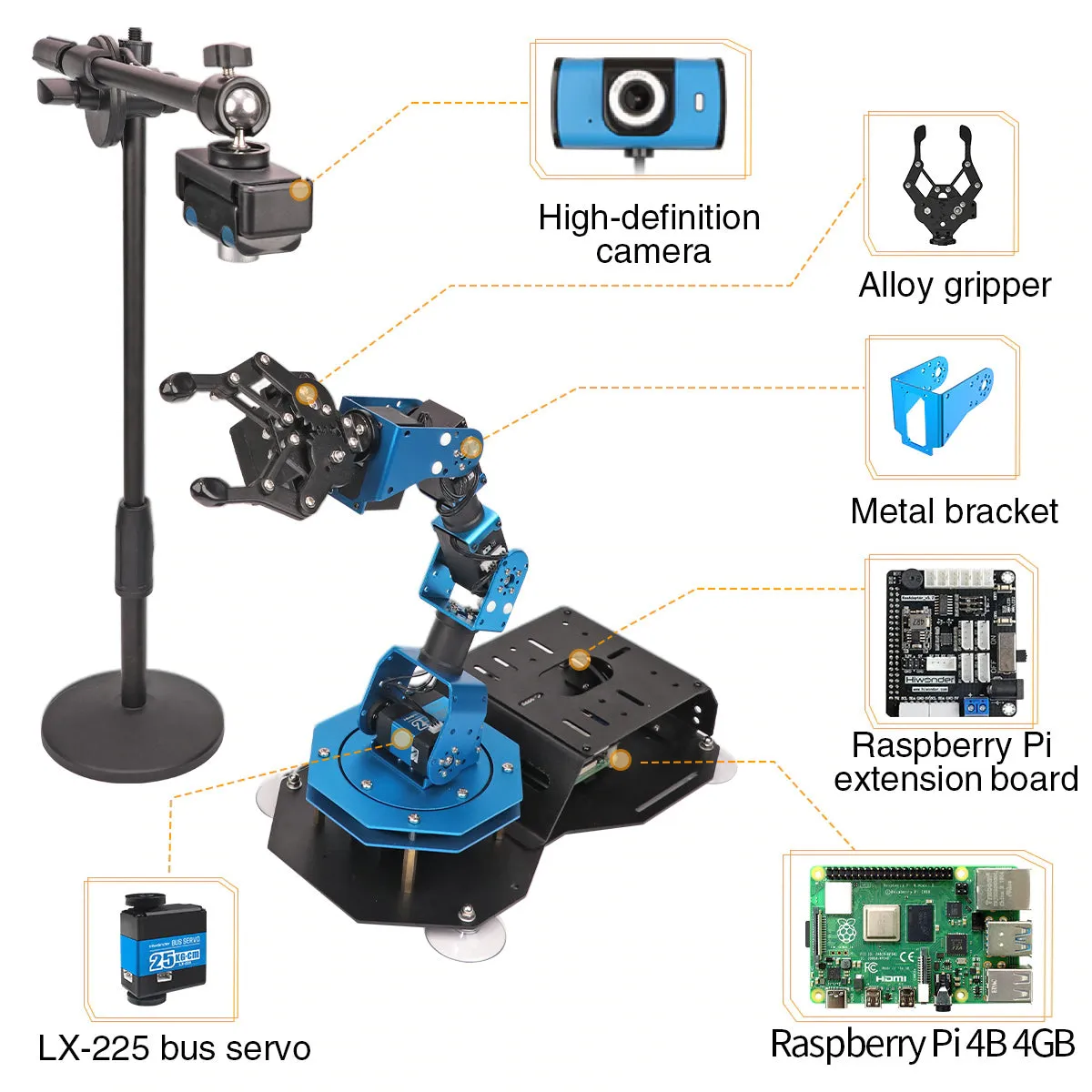

Powerful Control System
  • The associated MCU shunts Raspberry Pi workload and reduced resource usage
  • Built-in RGB, buzzer, LED and other response devices
  • Three IIC ports for extension
  • Lead out GPIO pints to your development
  • 4PIN ports are compatible with Hiwonder sensors
Intelligent Bus Servo Powerful Core
ArmPi uses intelligent serial bus servo with high precision, feedback function and convenient wiring which reduces the friction between wire and brackets. The servo at the base is upgraded to a 25KG torque servo so that ArmPi can grab more than 250g and the movement is more steady.
ArmPi Rotic Arm Packing List
Specifications



Item Specification

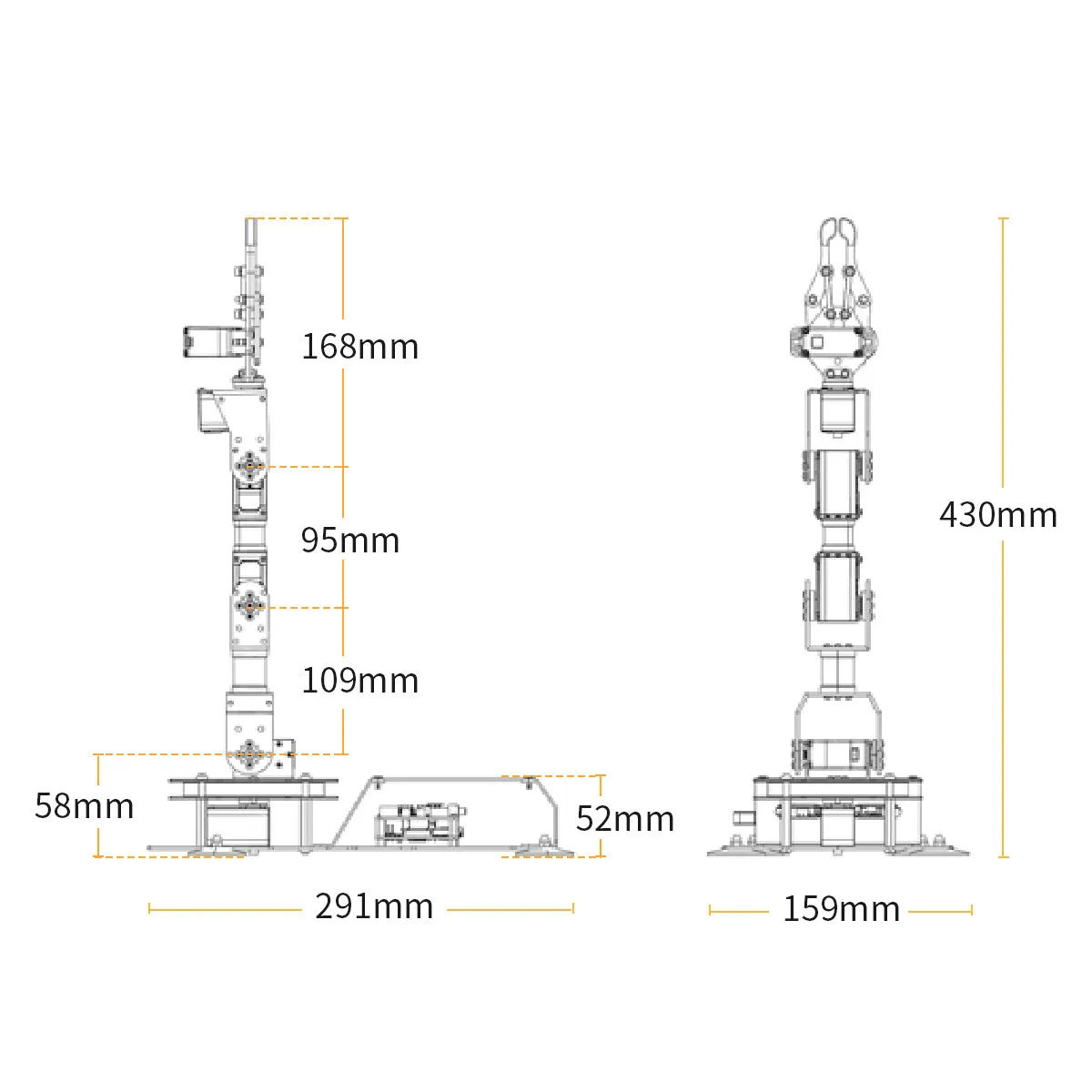

Size height 291* width 159* height 430 (mm)
Weight 1.2kg
Material metal bracket
Camera resolution 480P
DOF 5DOF gripper
Power Supply  7.5V 6A DC adapter
DOF 5DOF gripper
Hardware Raspberry Pi 4B and Raspberry Pi extension board
Software PC VNC software iOS/Android mobile phone App
Servo Parameter single shaft/LX-15D/LX-225 intelligent bus servo
Control System computer and mobile phone app control
Package Size 46* 38* 18 (cm)
Package weight about 4.5kg

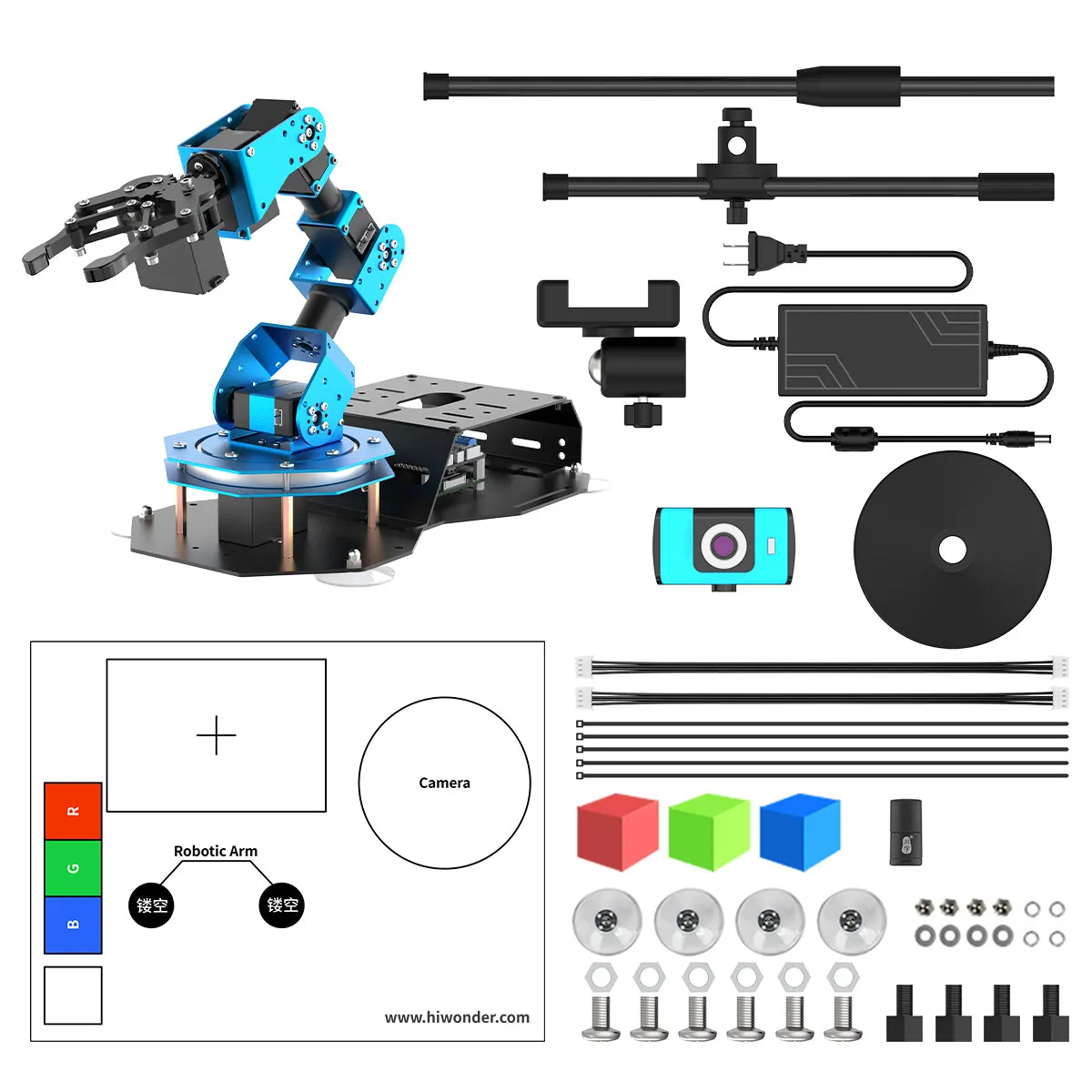

Package List (assembled) ArmPi robotic arm
7.5V 6A power supply adapter
Camera fixed metal bracket
Camera
Map
3*3cm red, green and blue blocks
Card reader
ArmPi Hiwonder Raspberry Pi 4B AI Vision Robotic Arm/ Python Program
  • WithoutRaspberryPi4B
  • WithRaspberryPi4B4GB
  • WithRaspberryPi4B8GB

$ 76.48

$ 58.83

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
