Product Details
＋
Why settle for ordinary LEDs?
Some projects need more than just ordinary LEDs, and that's where dlux-dlites come into play. Add some whimsy with our hand made LED. Each one is truly unique!
Each pack contains uniquely crafted LEDs. Liven up your PCB, add a hidden surprise, or just collect them all! Please keep in mind these are handcrafted, making each LED unique and slightly different in appearance.
They are all beautiful! We recommend you run them a bit dimmer, by adding a bit more resistance than you normally would on with a typical LED. It shows off the details much better!
Specifications
| Title | Pack Size | Dimensions (mm) | Voltage (@ 20mA current) | Wavelength | Luminous Flux |
|---|---|---|---|---|---|

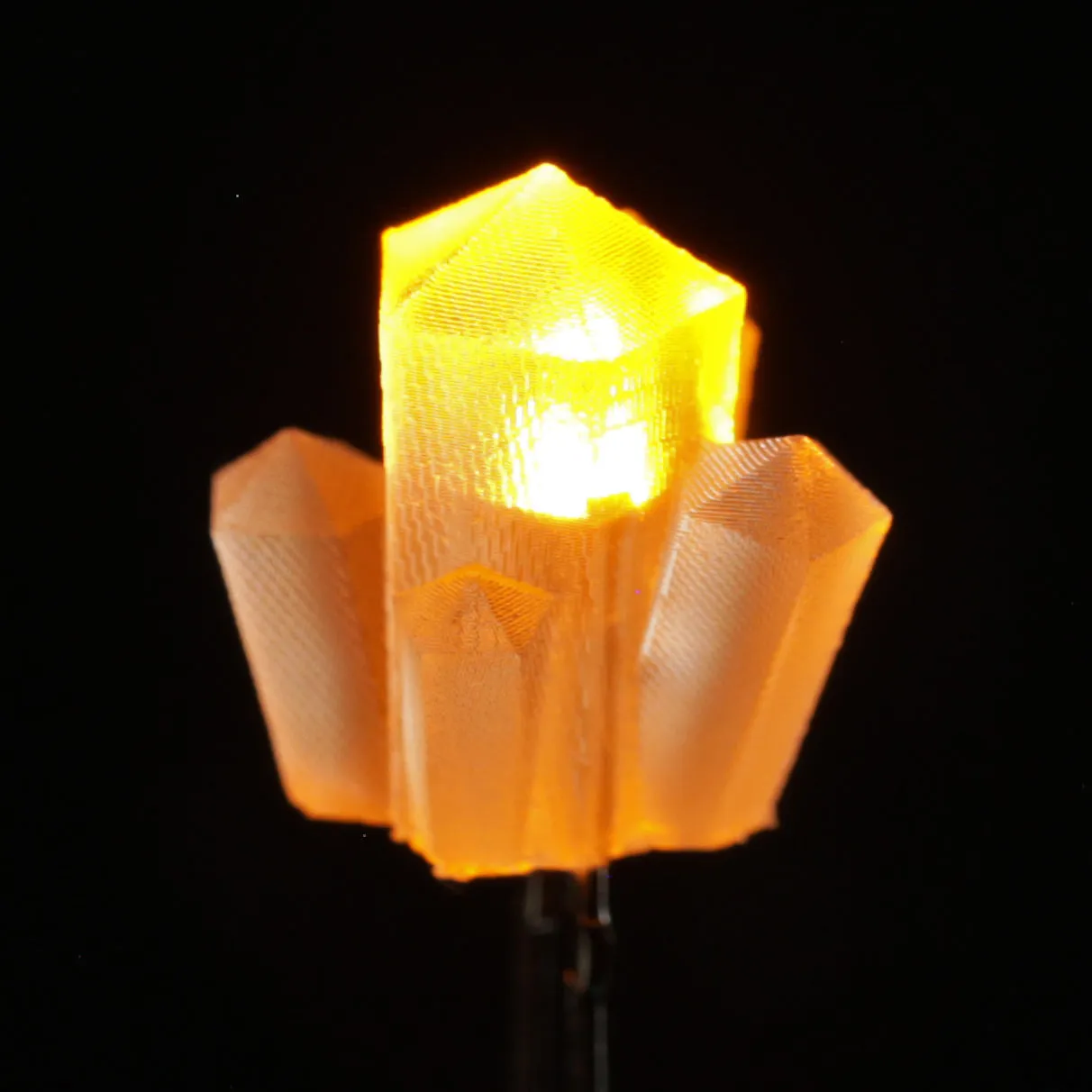

| Golden Crystal | 5 | 10.4 x 9.1 x 78.9 | ~2.0-2.2V | 590-595nm | ~2000-3000 |

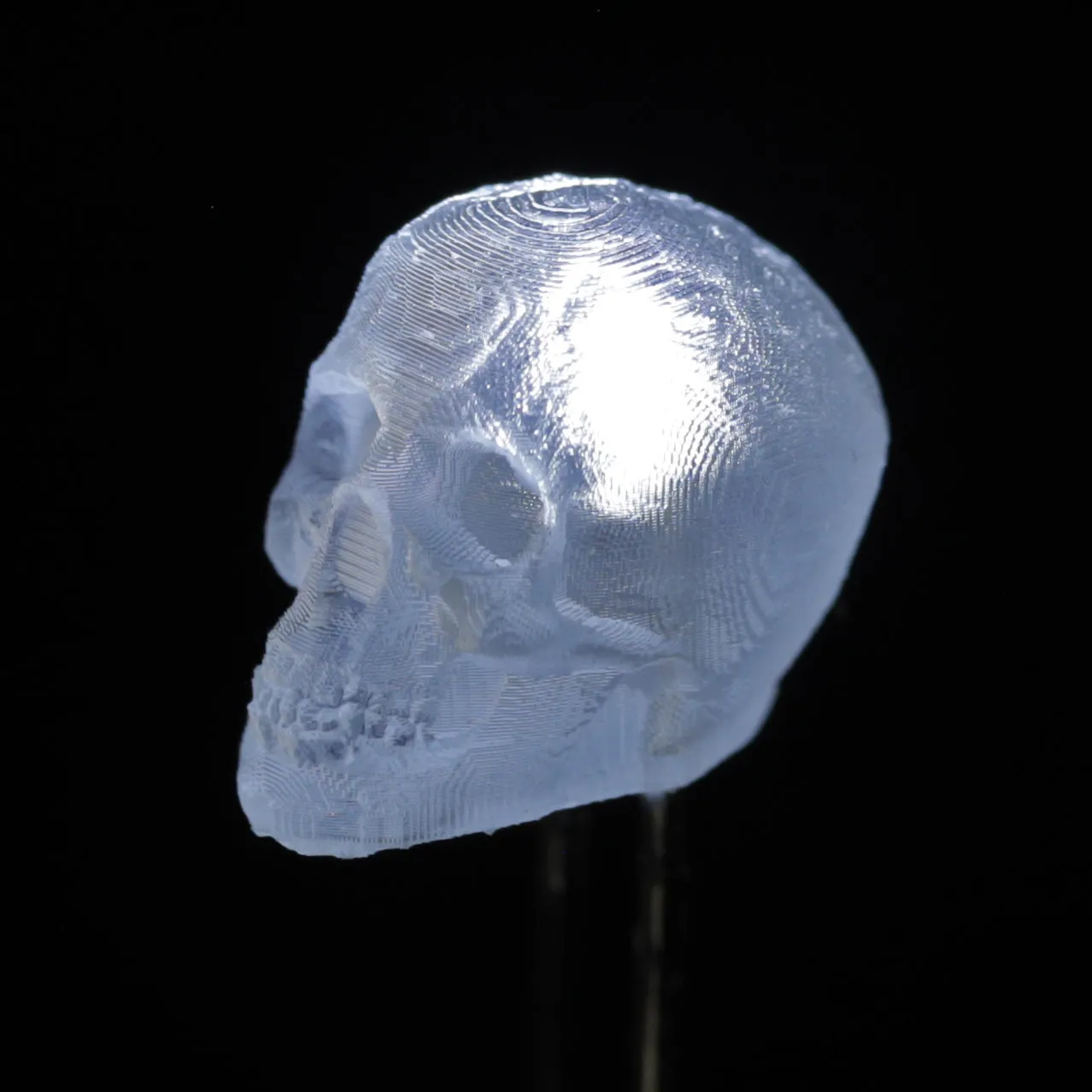

| Cool White Skull | 5 | 8.5 x 7.6 x 11.5 | ~3.0-3.2V | 8000K | ~6000-8000 |

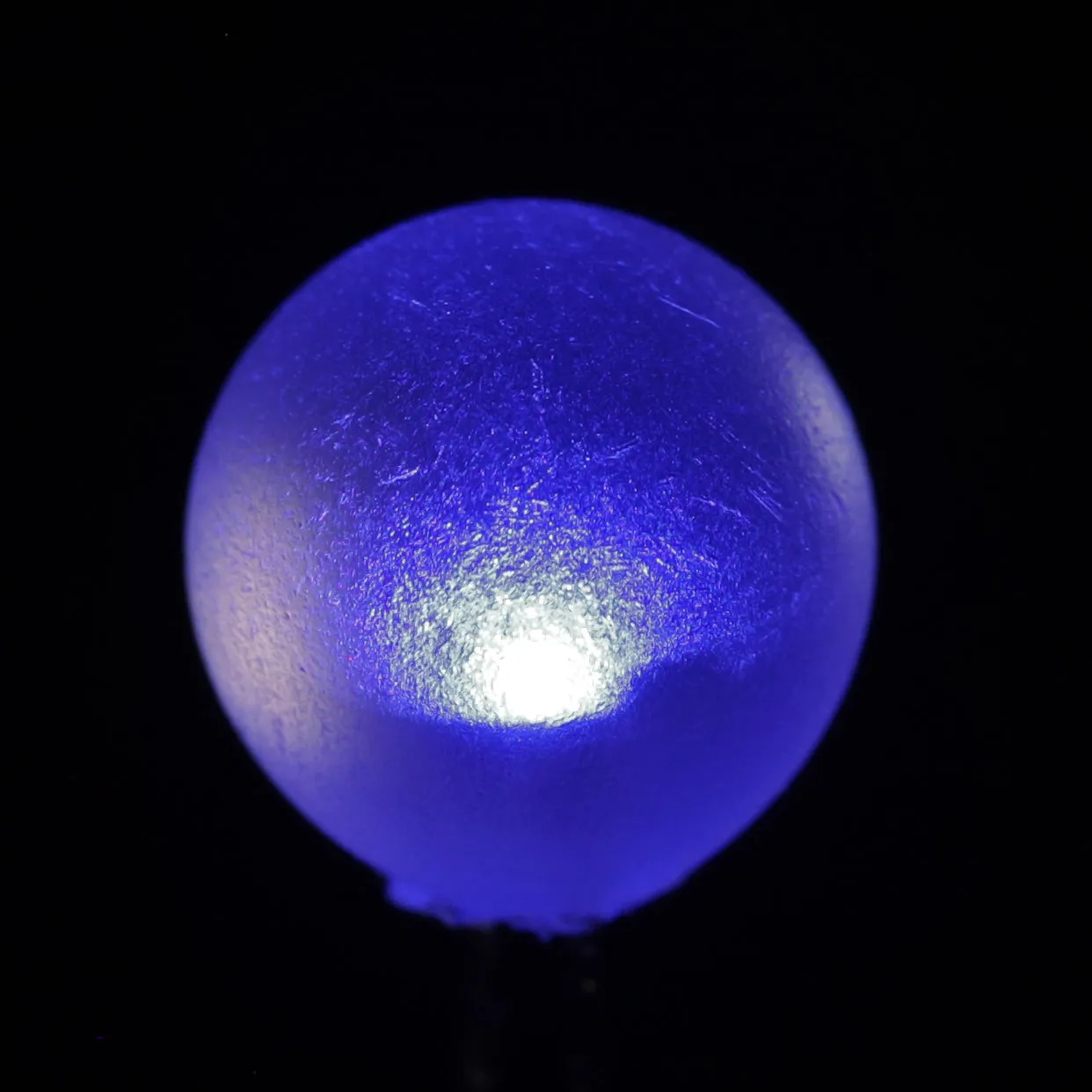

| Blue Sphere | 5 | 9.9 | ~3.0-3.2V | 460-465nm | ~3000-4000 |

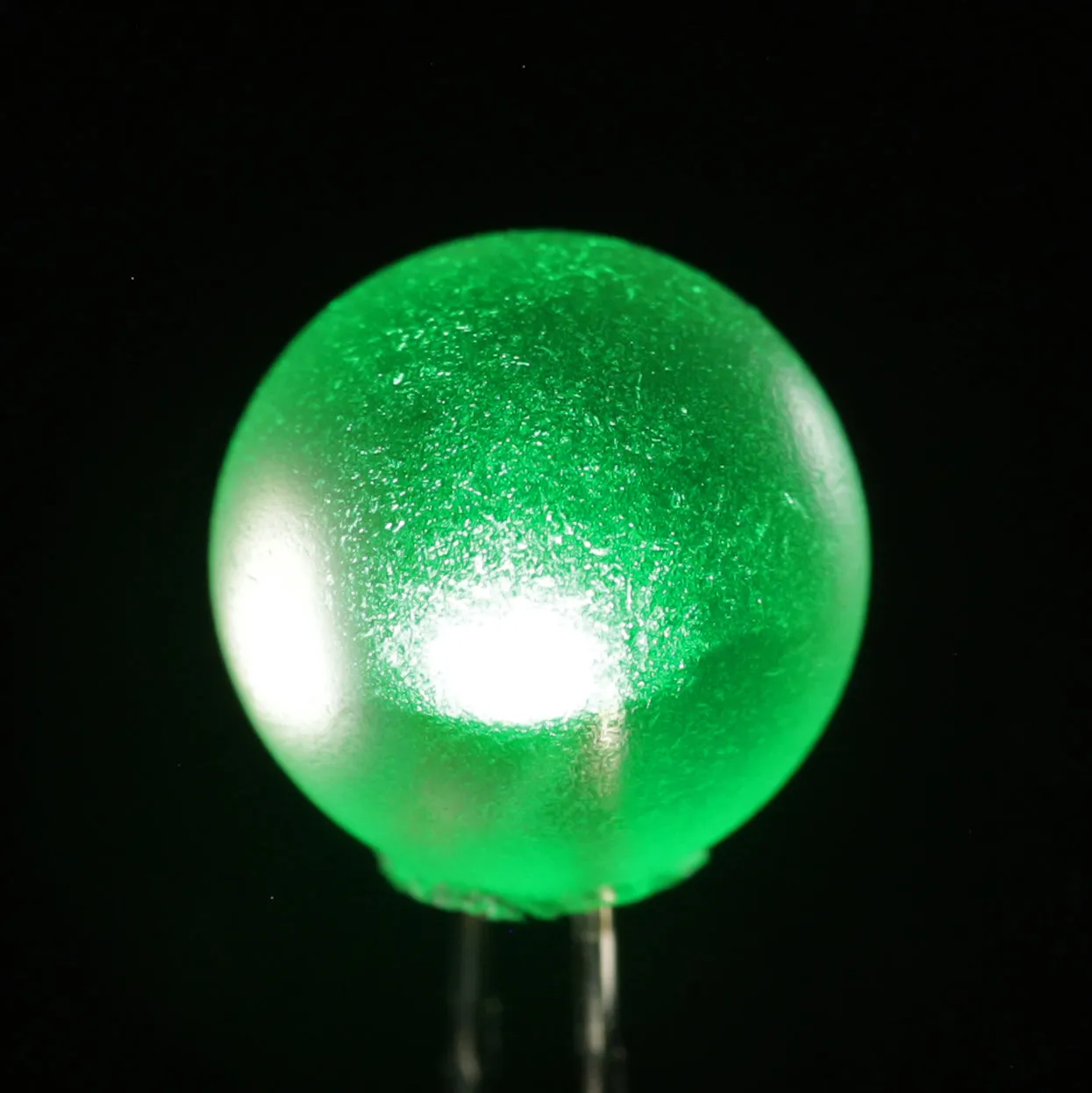

| Green Sphere | 5 | 9.9 | ~3.0-3.2V | 520-525nm | ~6000-8000 |

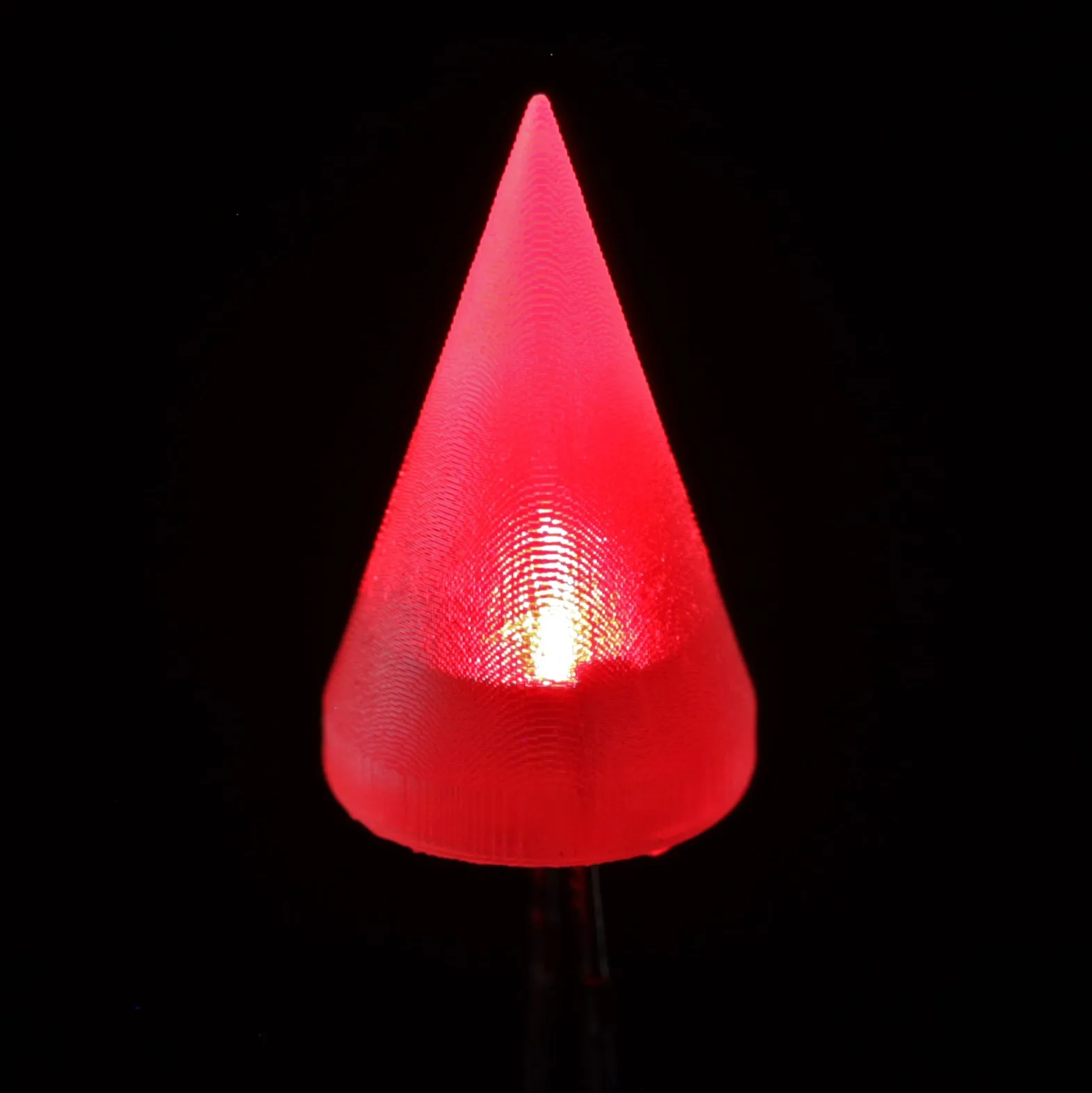

| Spike | 5 | ~2.0-2.2V | 620-625nm | ~1000-2000 | |

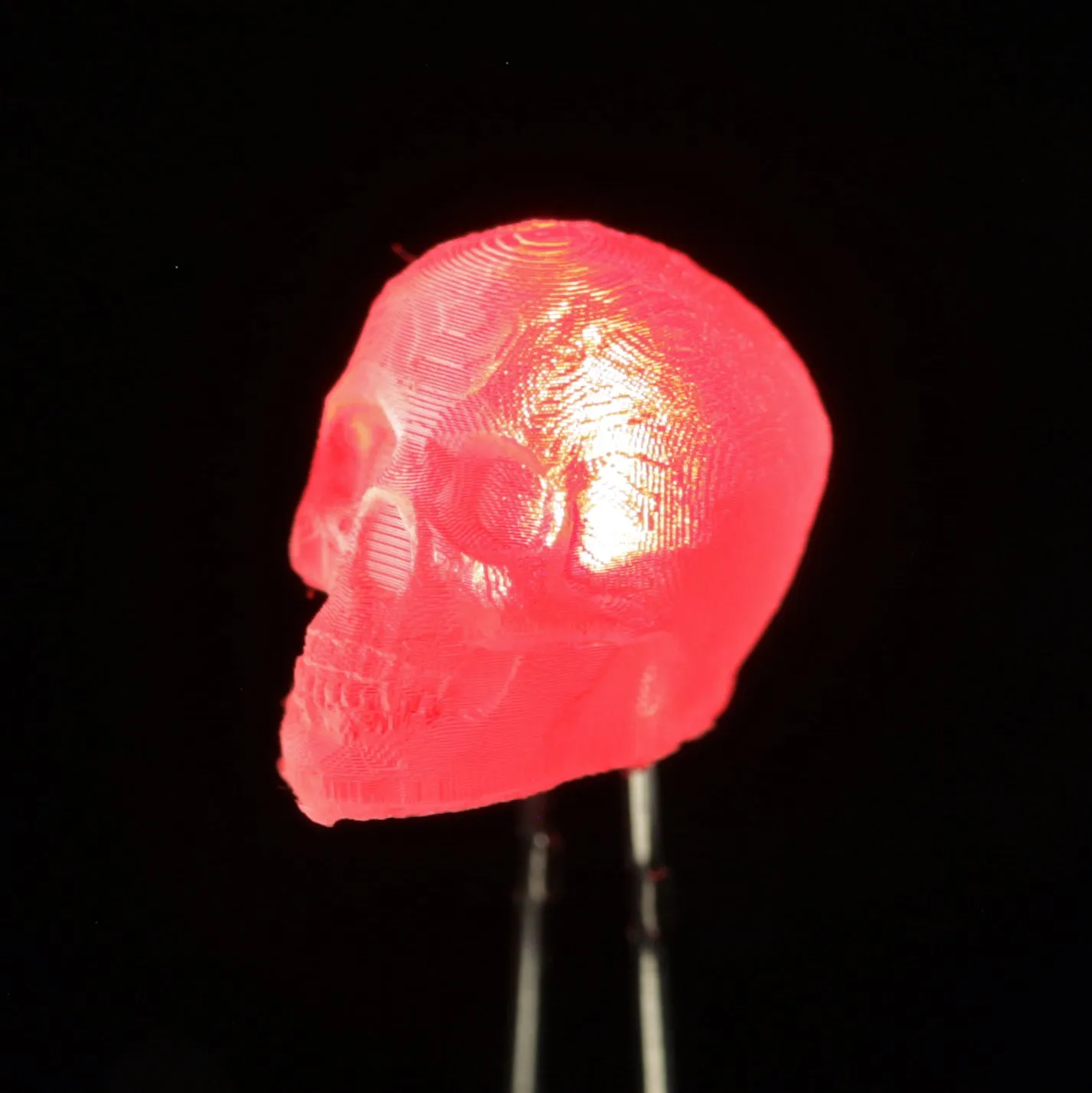

| Skull Red | 5 | 8.5 x 7.6 x 11.5 | ~2.0-2.2V | 620-625nm | ~1000-2000 |
| Blue Crystals | 5 | 10.4 x 9.1 x 78.9 | ~3.0-3.2V | 460-465nm | ~3000-4000 |

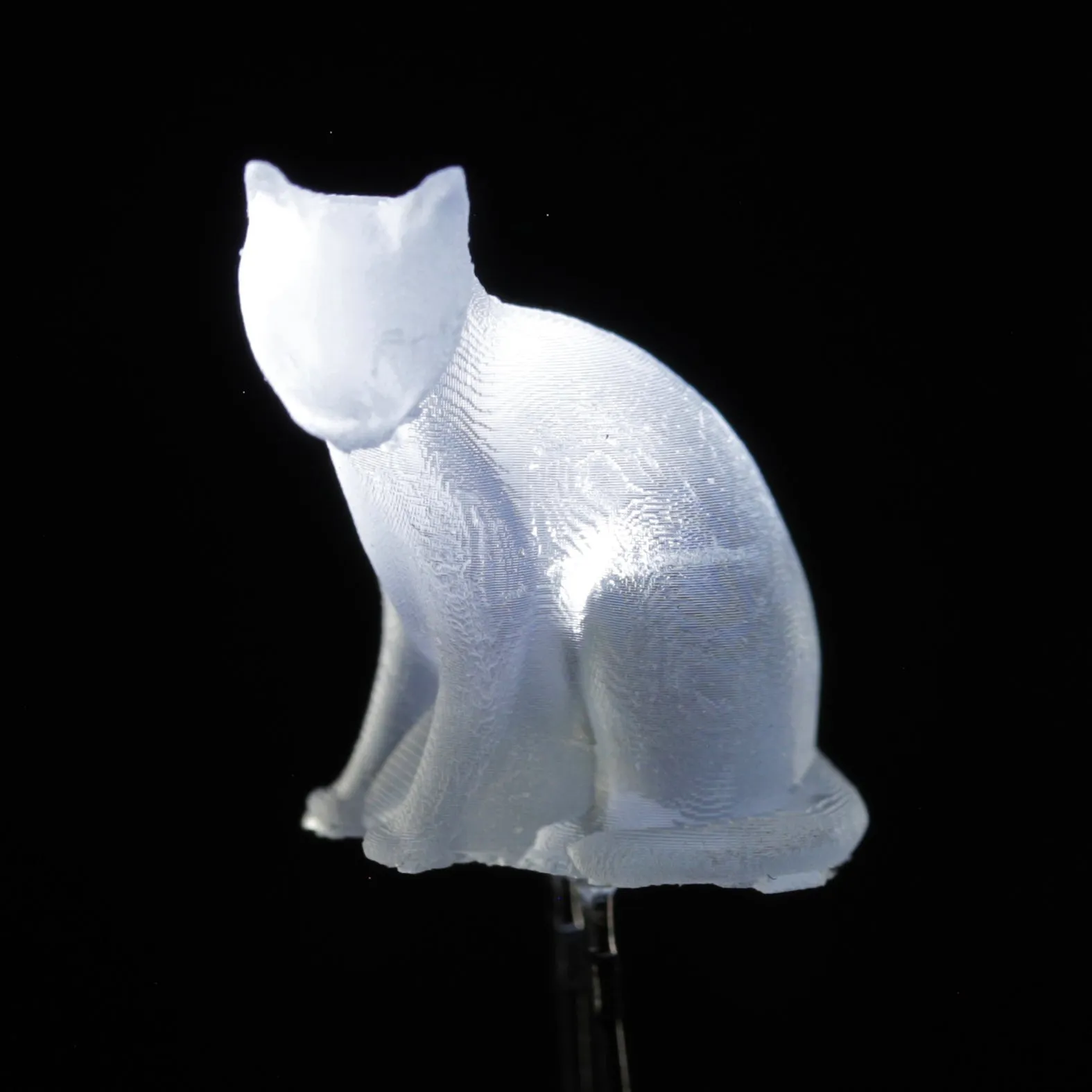

| Kitty White | 5 | 14.3 x 7.6 x 12 | ~3.0-3.2V | 8000K | ~6000-8000 |

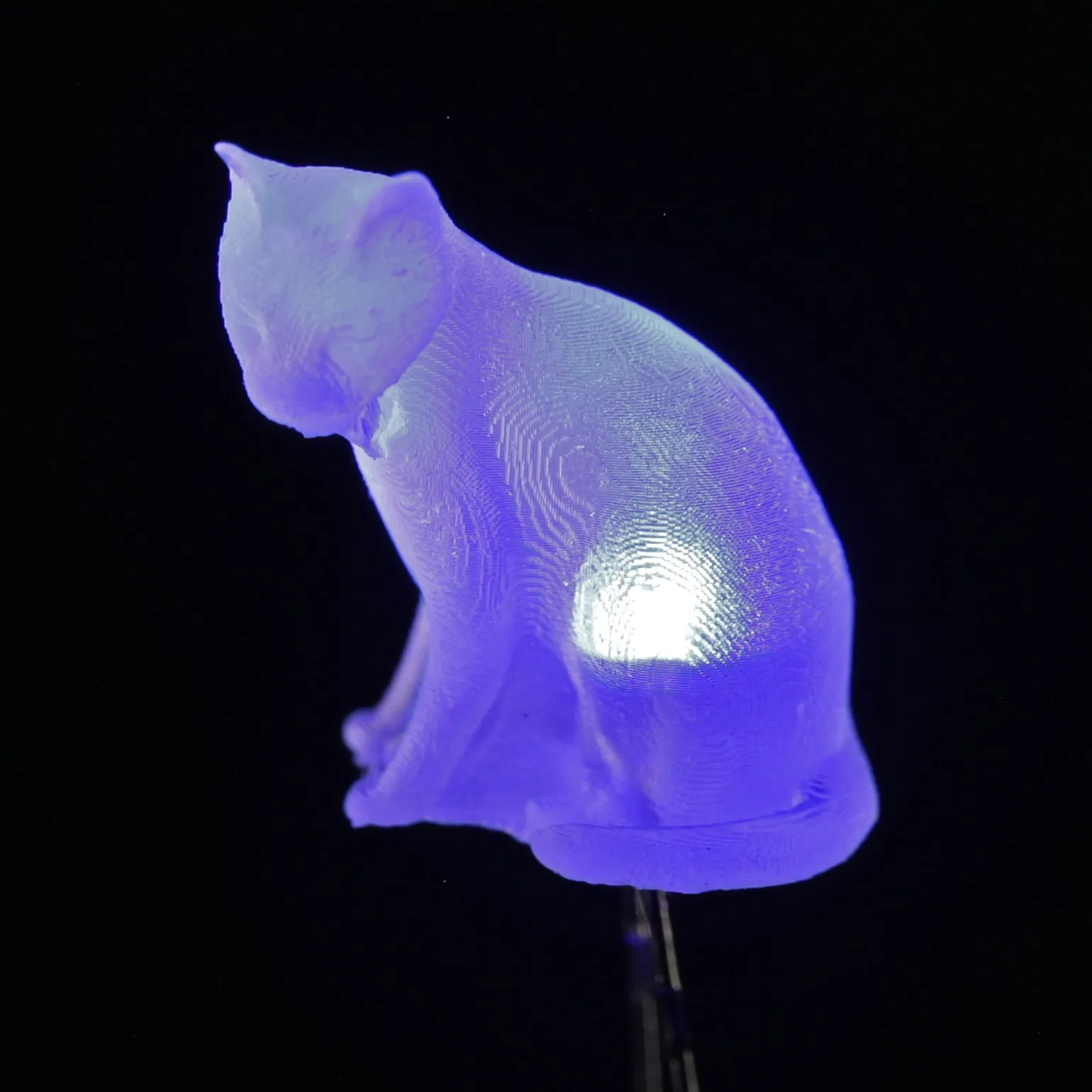

| Kitty Blue | 5 | 14.3 x 7.6 x 12 | ~2.0-2.2V | 620-625nm | ~1000-2000 |

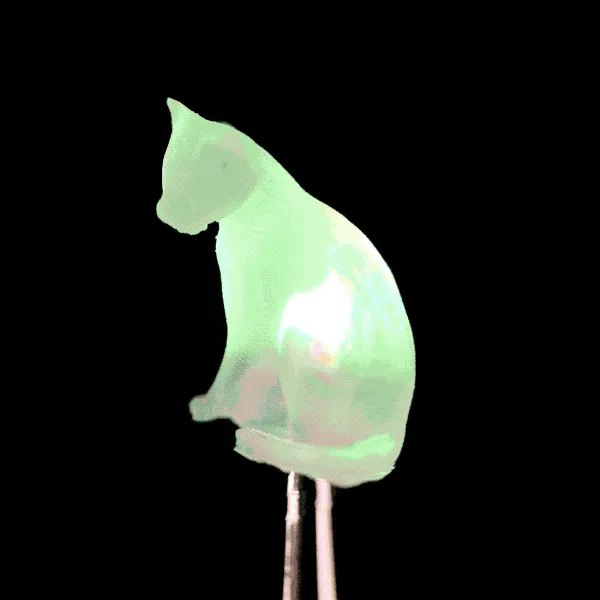

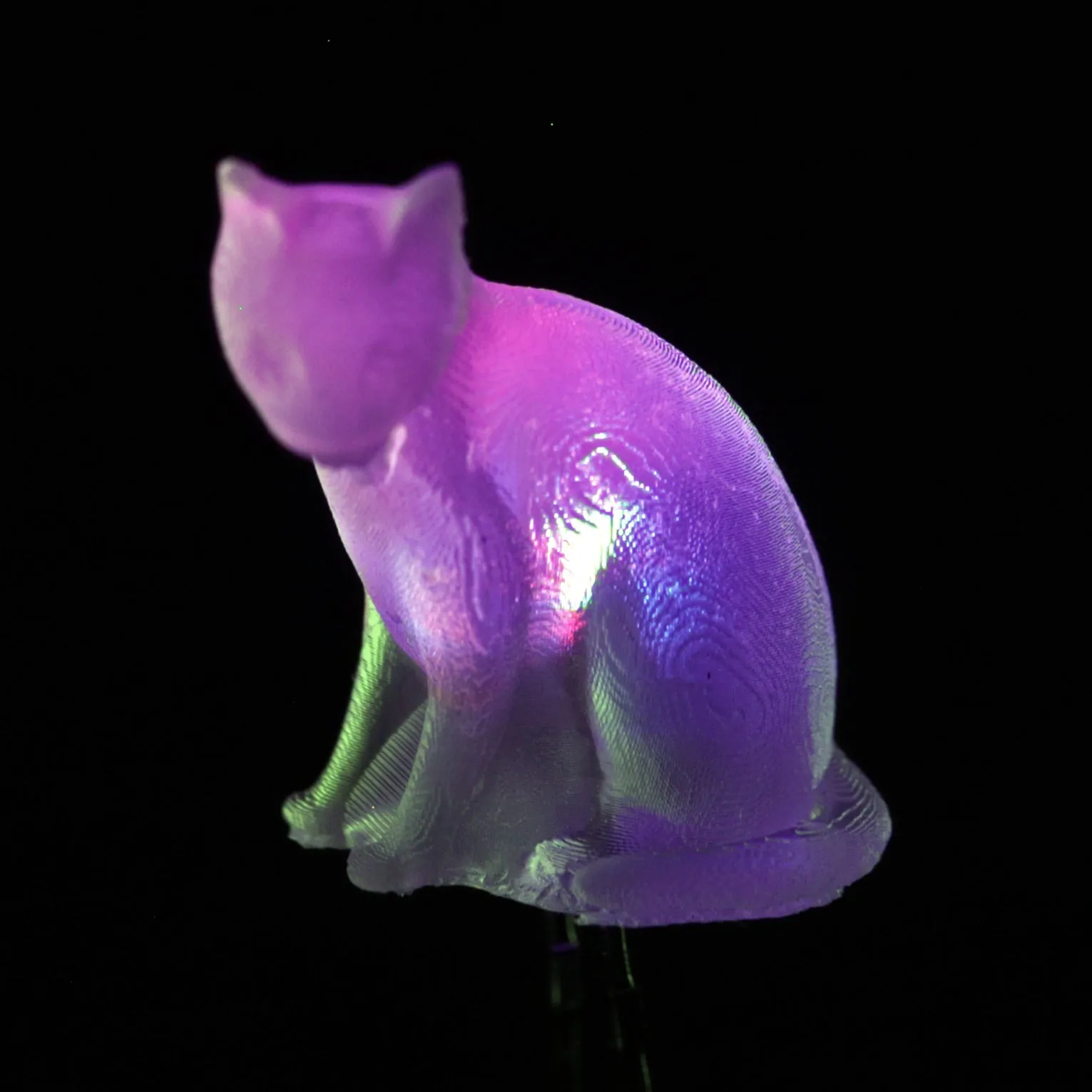

| Kitty Rainbow | 3 | 14.3 x 7.6 x 12 | ~3.0-3.2V | variable | variable |

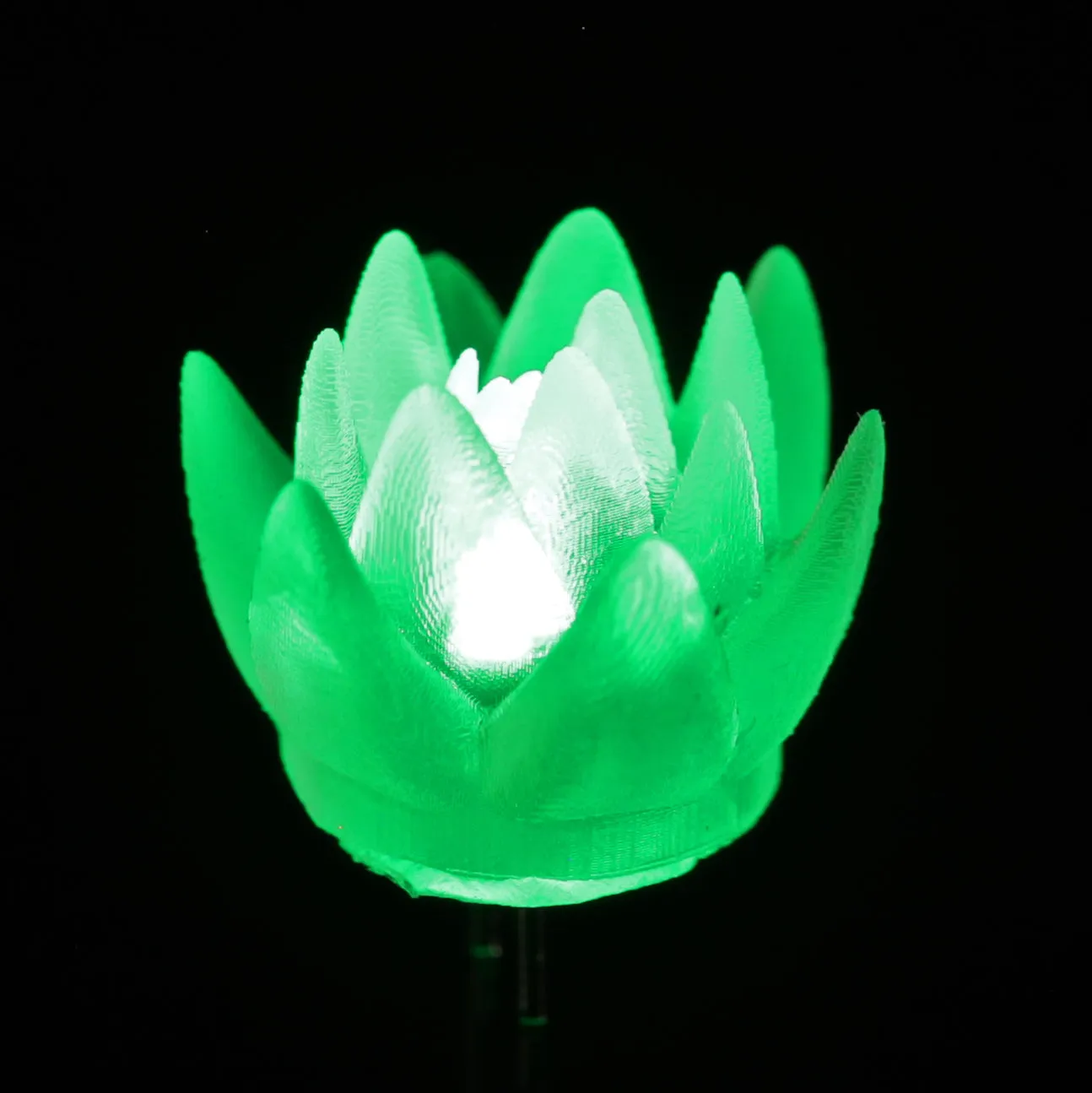

| Succulent Green | 5 | 8.5 x 10.2 x 11.2 | ~3.0-3.2V | 520-525nm | ~6000-8000 |

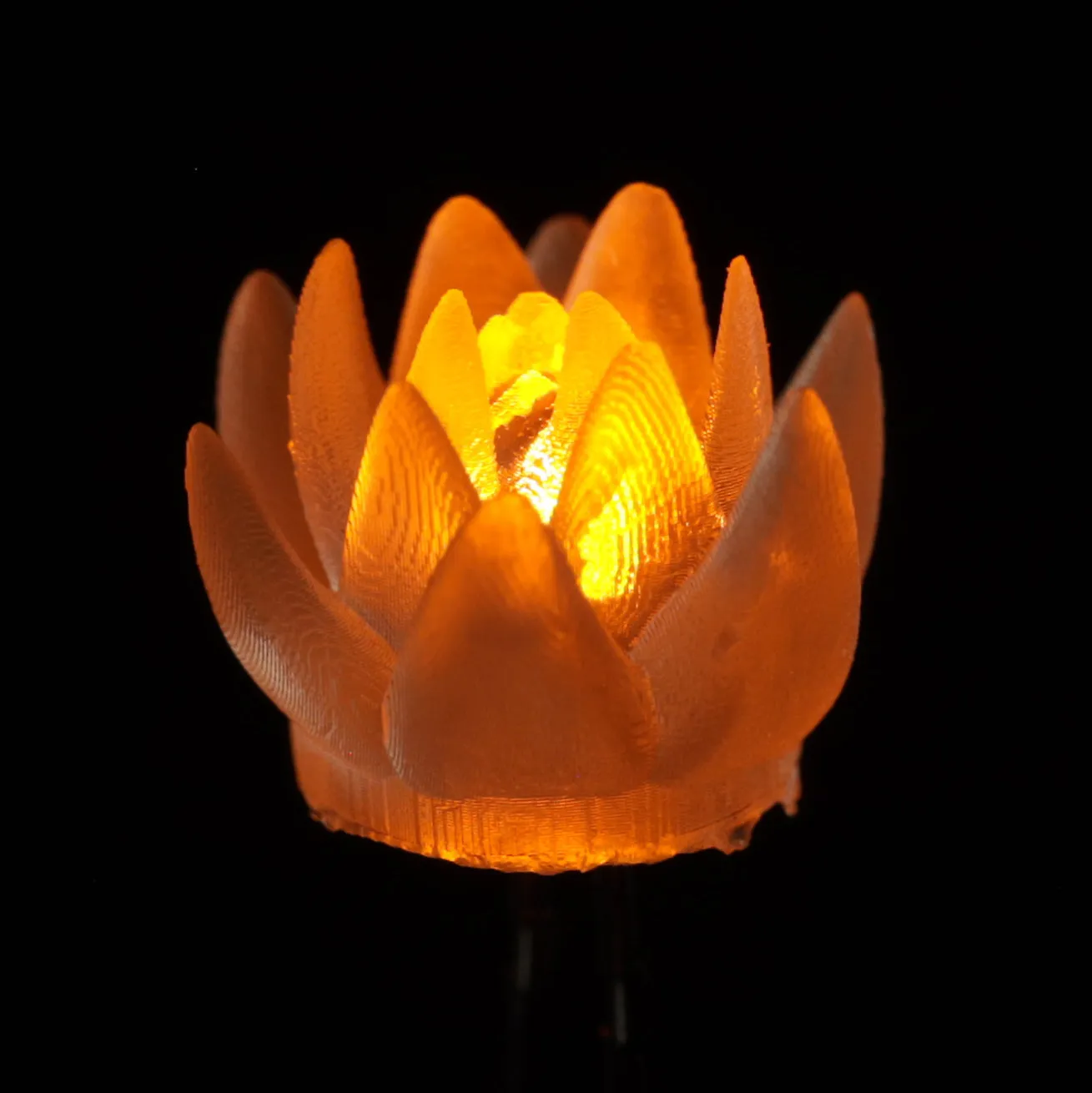

| Succulent Golden Yellow | 5 | 8.5 x 10.2 x 11.2 | ~2.0-2.2V | 590-595nm | ~2000-3000 |
