Larson Electronics 1.59KW Solar Powered Security Light Tower - (4) 100 Watt LED Lights - Motion Sensor - Pneumatic Mast

 Description

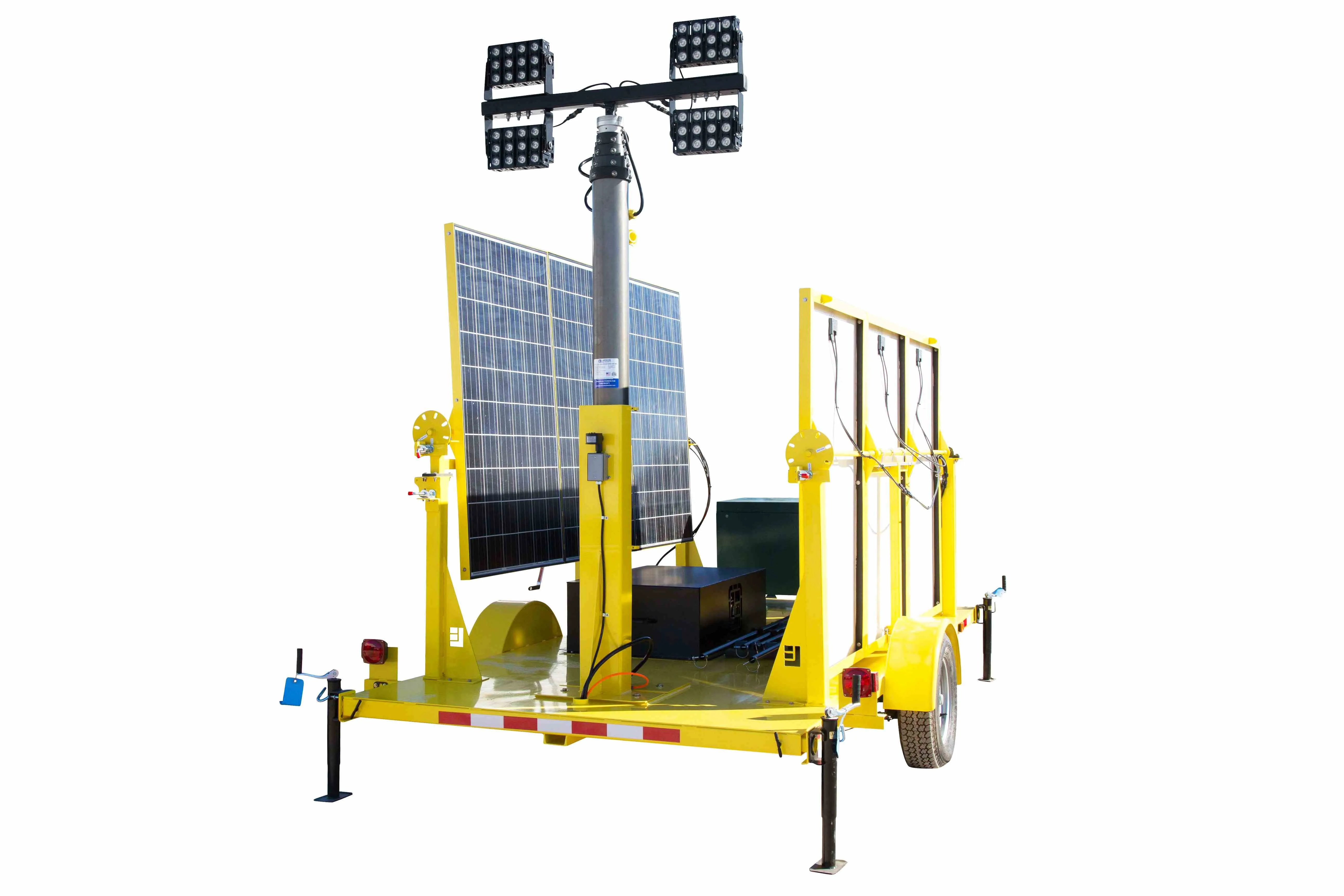

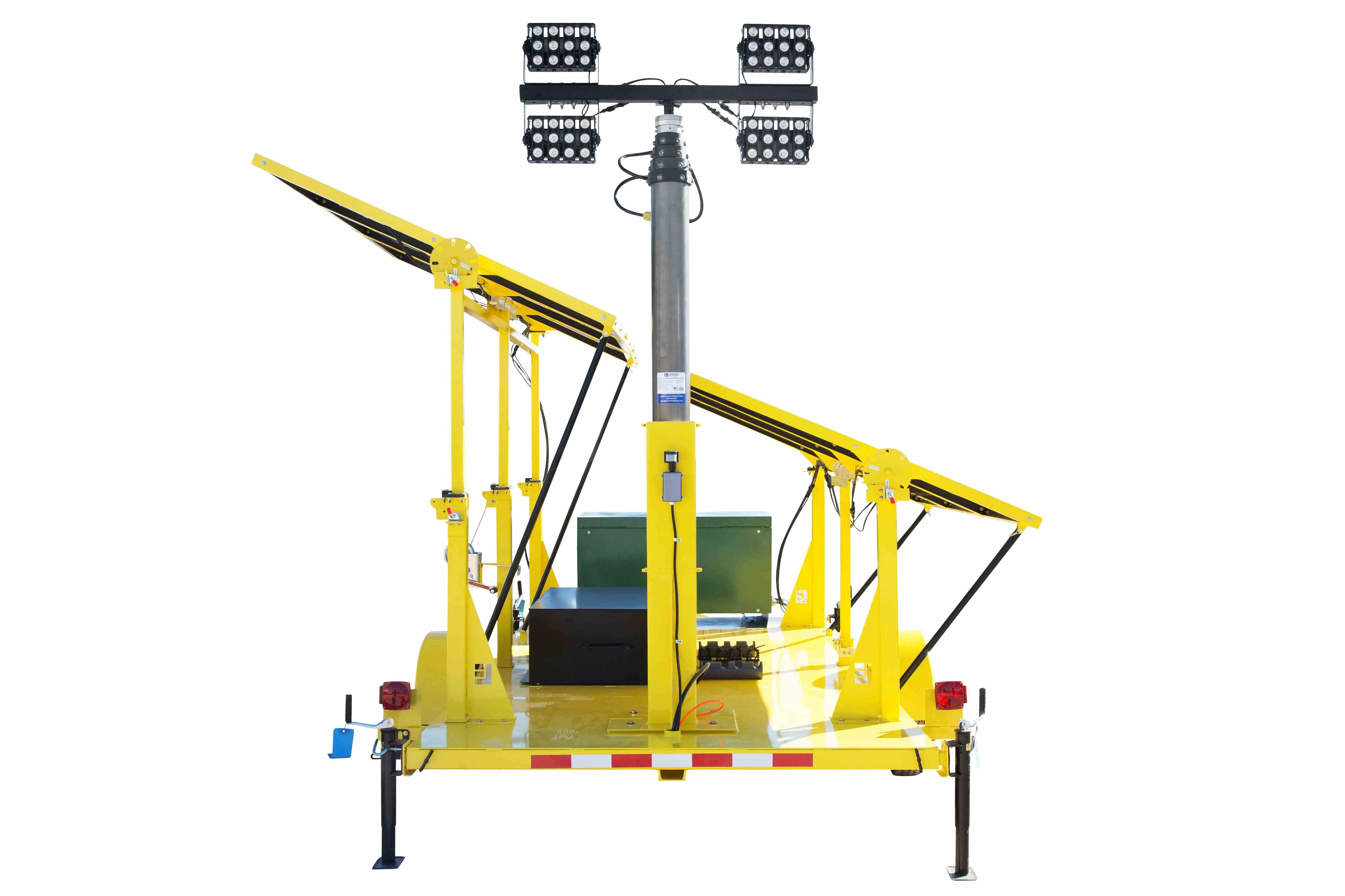

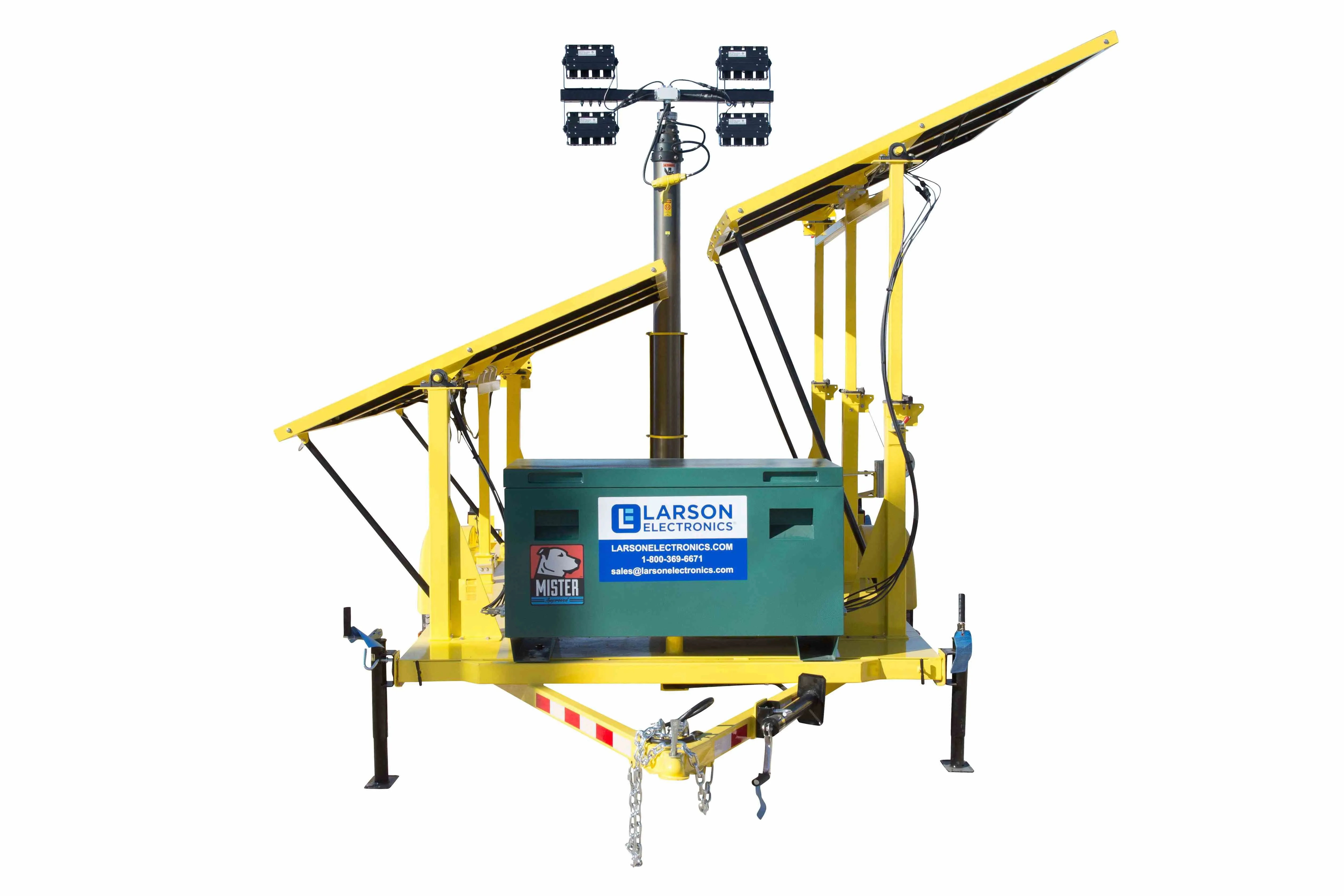

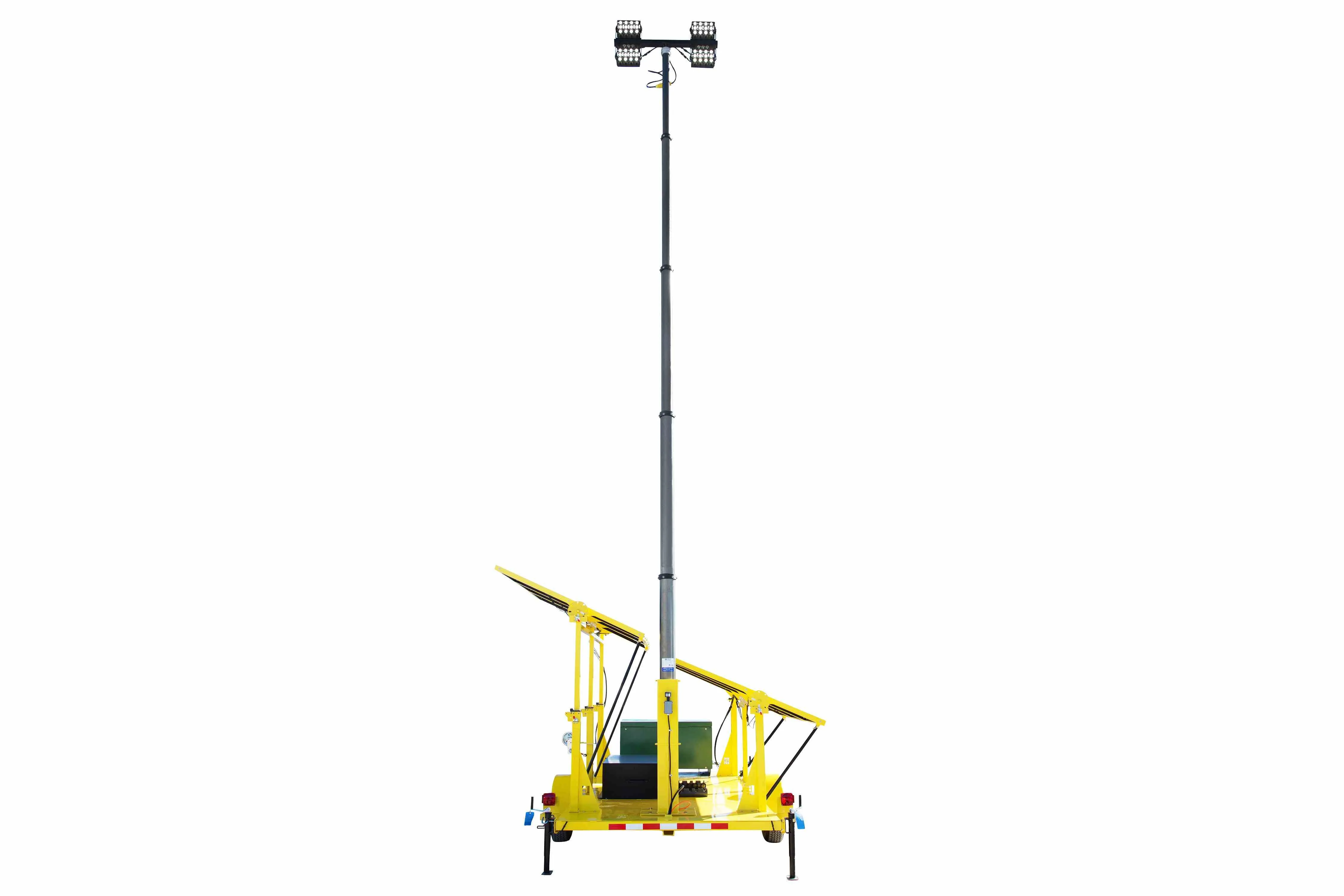

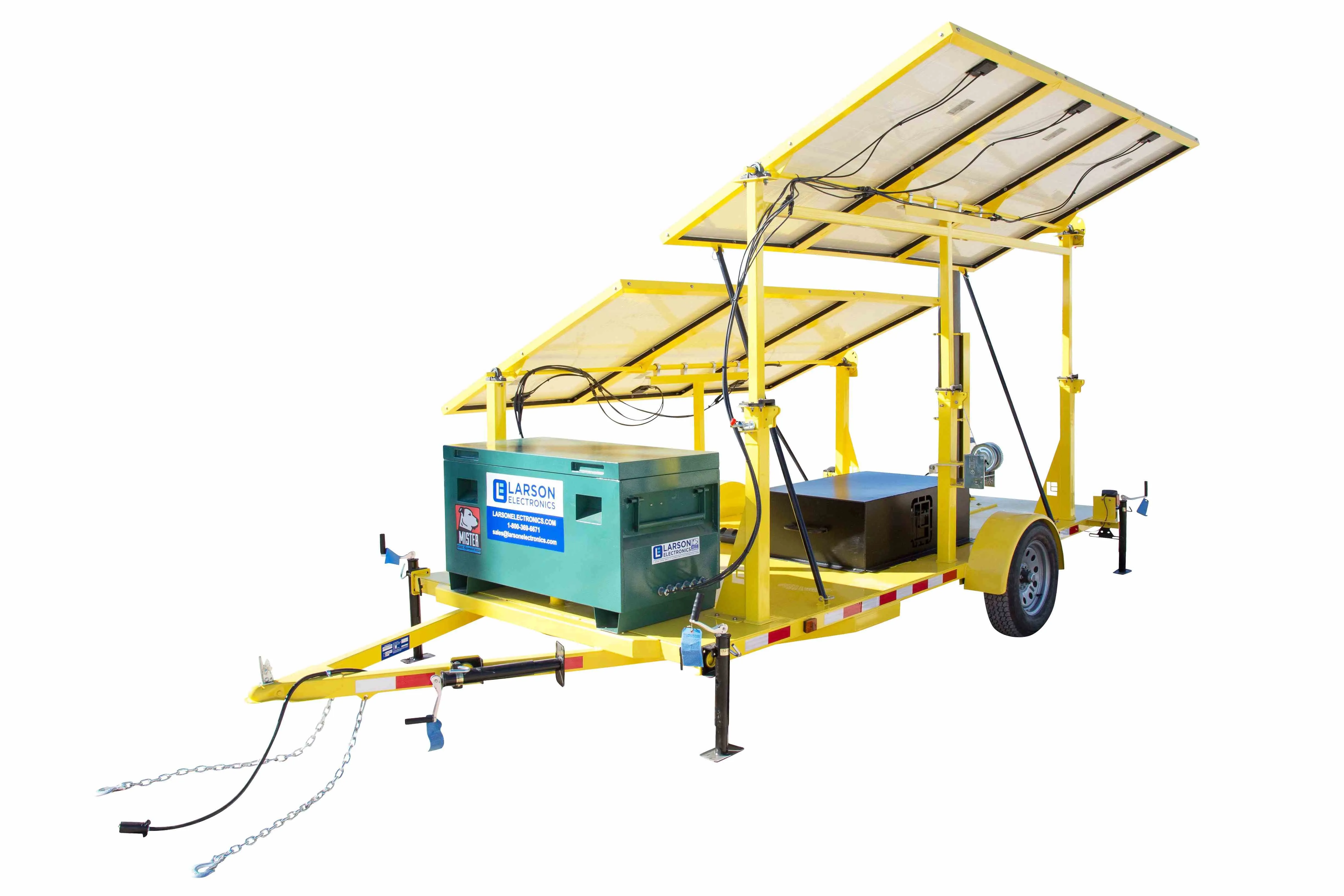

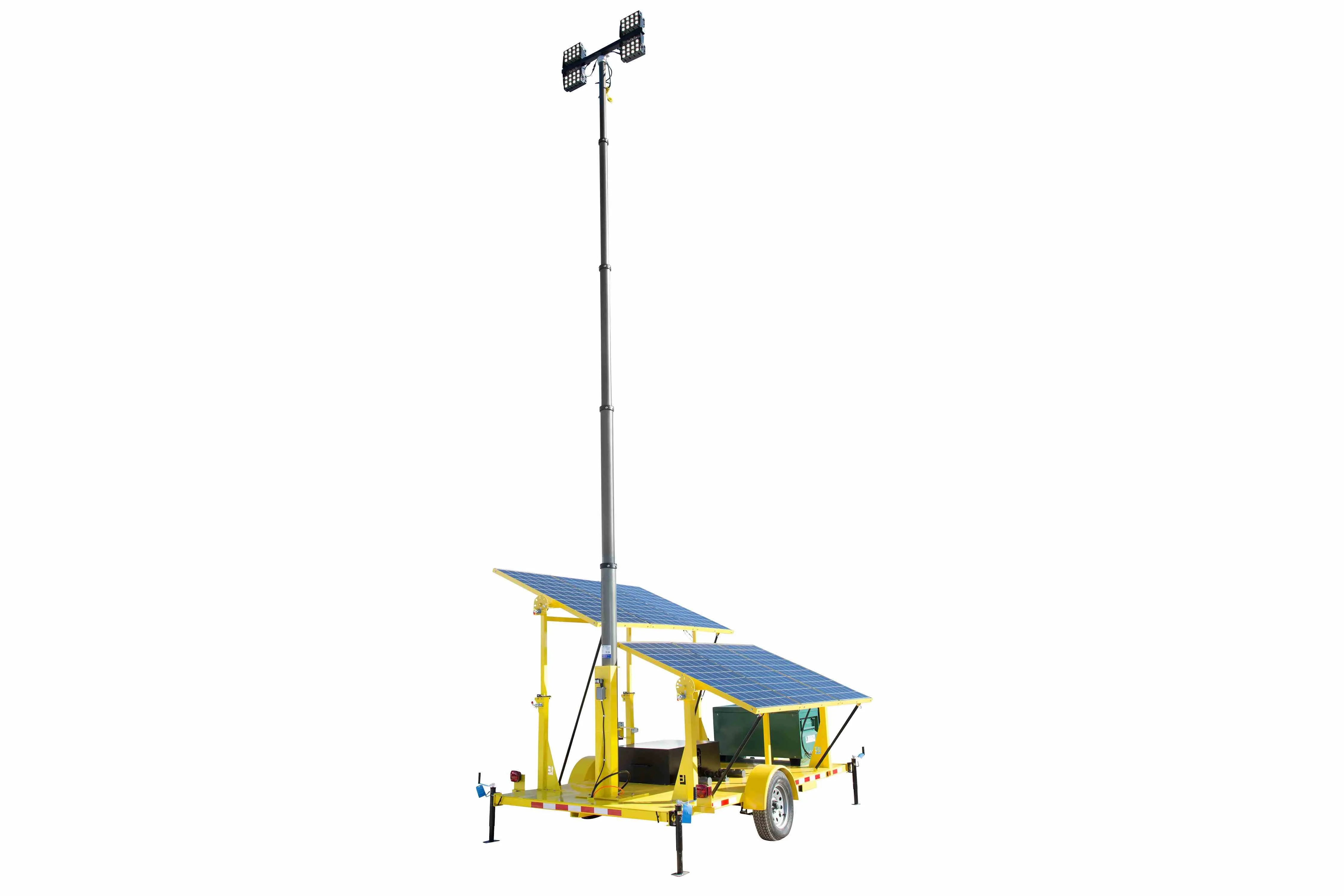

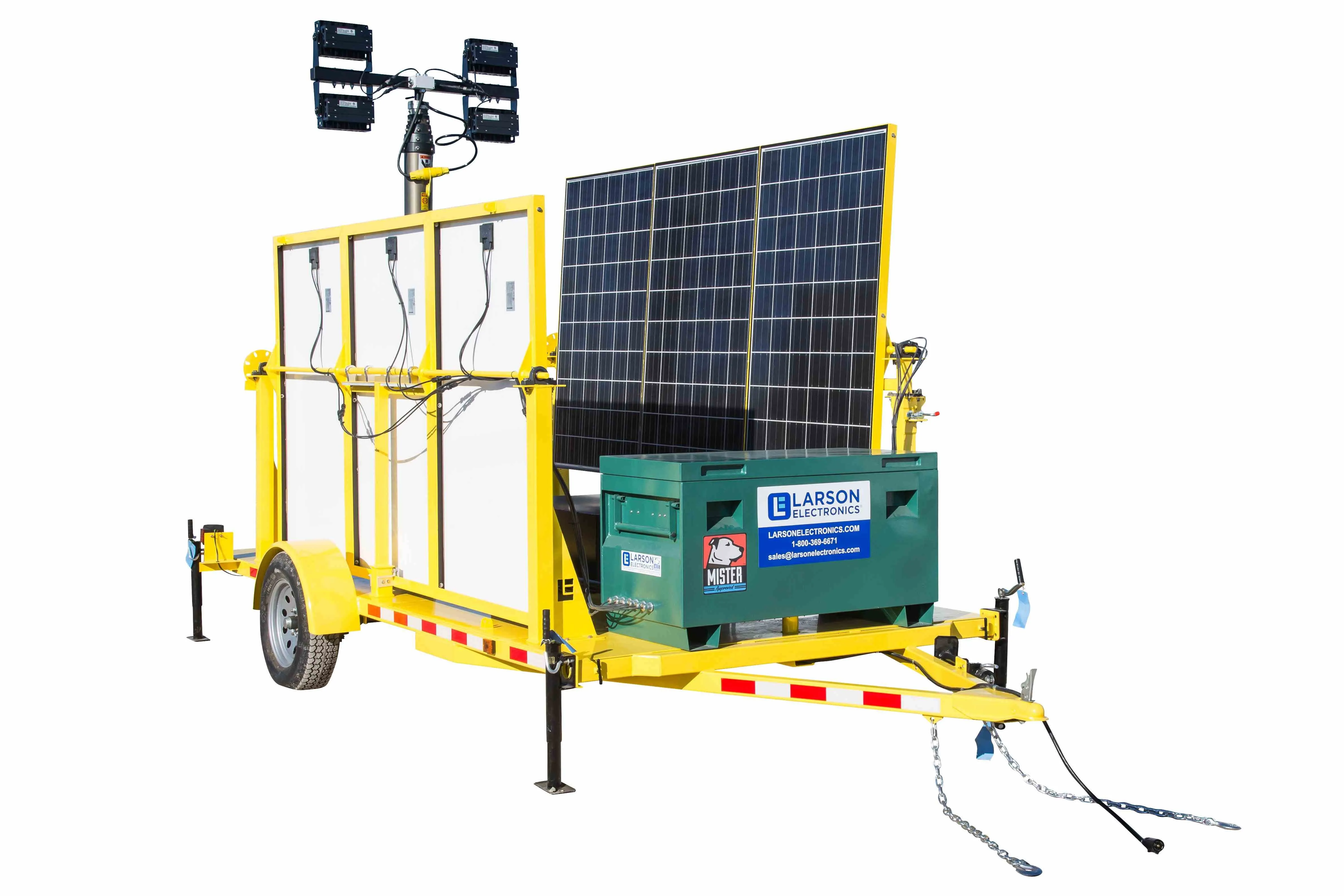

The Larson Electronics SPLT-1.59K-800A-30-4X100W-LED-MS Solar Security Light Tower offers a reliable, clean energy lighting solution ideal for security applications in remote or off-grid areas. This solar-powered light tower features a 1.6KW solar generator system that provides up to 800 amp hours of usable battery capacity daily. It includes a pneumatic 30-foot mast, four high-output 100-watt LED light heads producing 54,000 lumens, and a motion sensor to automatically activate lighting upon detecting movement in the secured area. The entire system is mounted on a durable, transportable trailer with stabilizing outriggers and a removable tongue for ease of deployment and storage.

Key Features

• Fully Solar Powered: Requires no fuel, ideal for remote, eco-conscious applications.
• High Output LED Lighting: Four 100-watt LED floodlights deliver 54,000 lumens across 4 acres.
• Automatic Motion Sensor: Activates lights upon detecting movement for instant area security.
• Adjustable Solar Panel Angle: Panels are set to optimize sun exposure based on seasonal angles.
• 30-Foot Pneumatic Mast: Aluminum mast with 360° rotation for adaptable lighting coverage.
• Heavy-Duty Trailer: 3500 lb-rated trailer with industrial-grade coating, DOT-compliant lighting, and adjustable pintle hitch.
• Customizable Options: Expandable battery capacity, additional banks, and custom mounting options.

Detailed Specifications

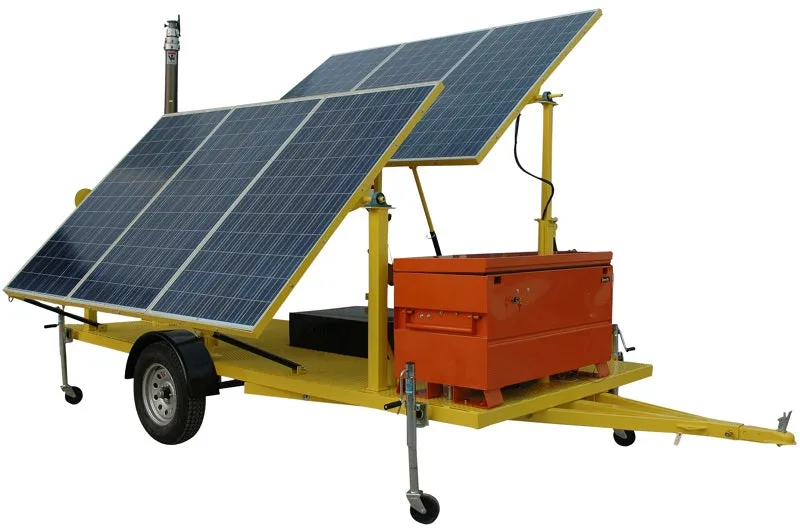

Solar Power System

• Solar Panels: Six 265-watt panels (1.6KW total output).

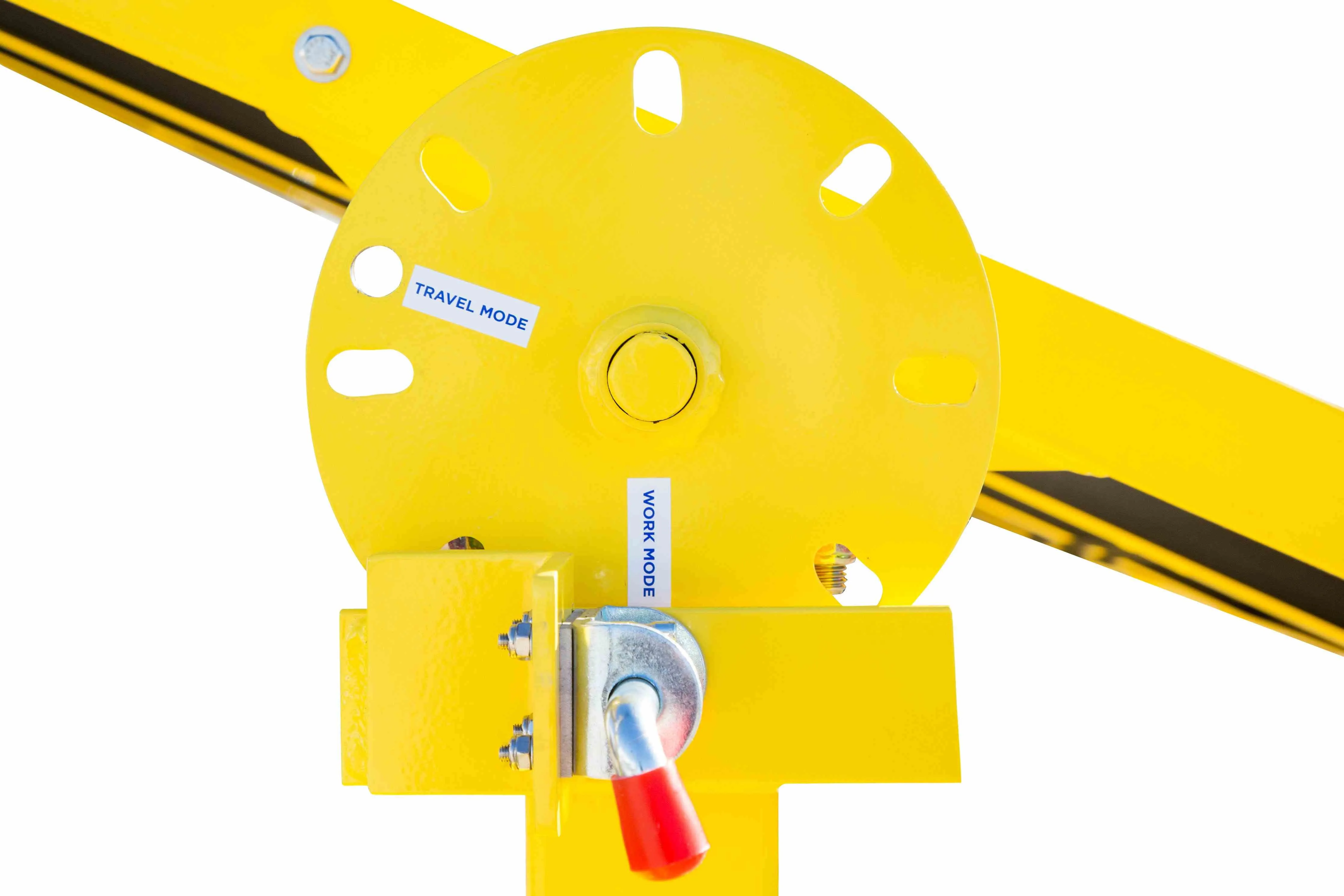

• Deployment Mechanism: Rotating axis and manual winch.
• Average Charging Rate: 75 amps/hour.
• Panel Protection: Fused combiner box.
• System Protection: Battery over/under voltage and ground fault isolation.
• System Voltage: 24 volts.

Battery Bank

• Battery Type: Sixteen 6-volt, 200 amp-hour batteries.
• Total Capacity: 800 amp-hours (400 amp-hours usable).
• Battery Tray: Removable tray with shaded protective shield.

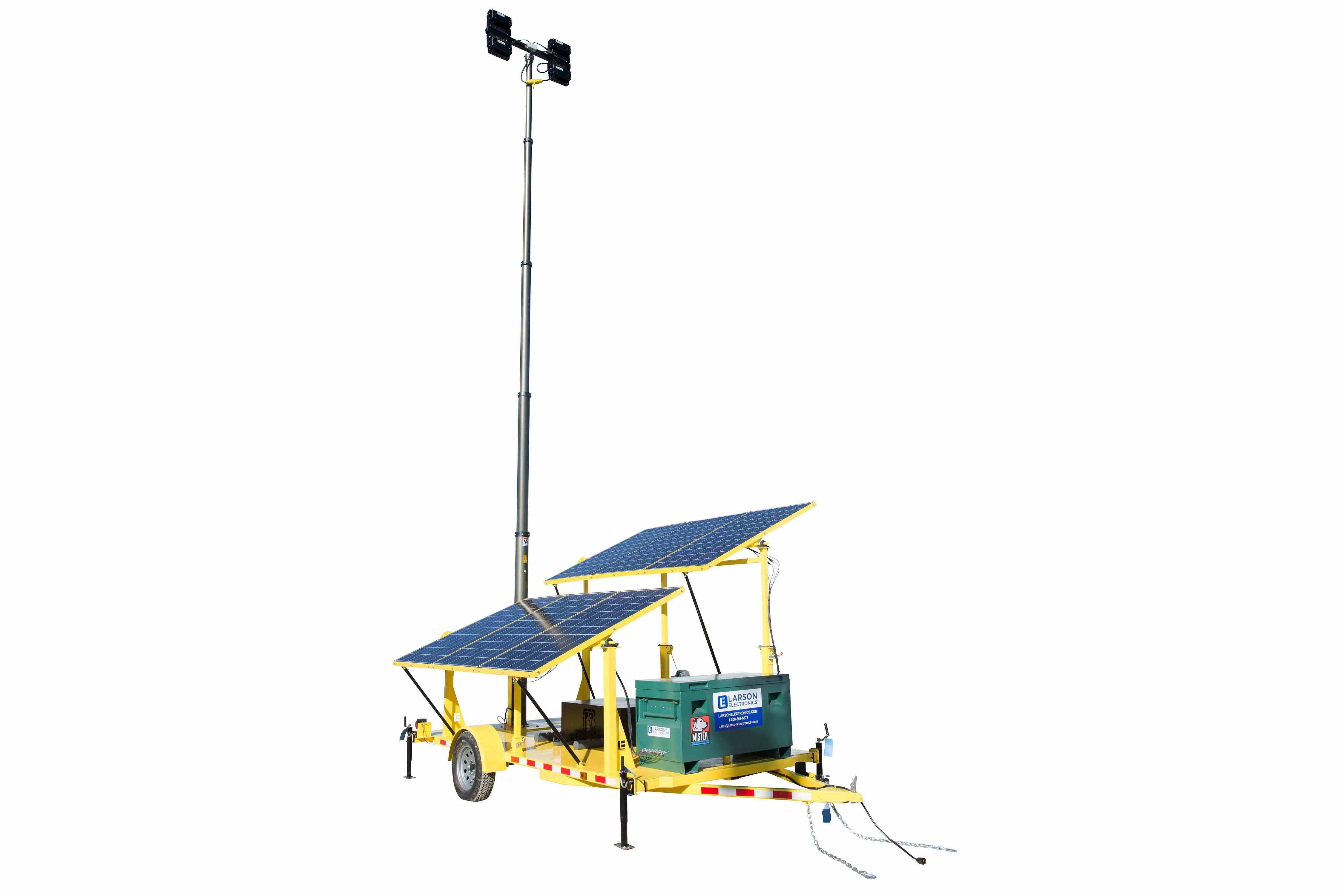

Light Mast

• Type: Pneumatic aluminum mast.
• Height: Adjustable up to 30 feet.
• Rotation: Full 360° with adjustable lock.
• Mounting Bracket Capacity: Supports 150 lbs, including lights and sensors.

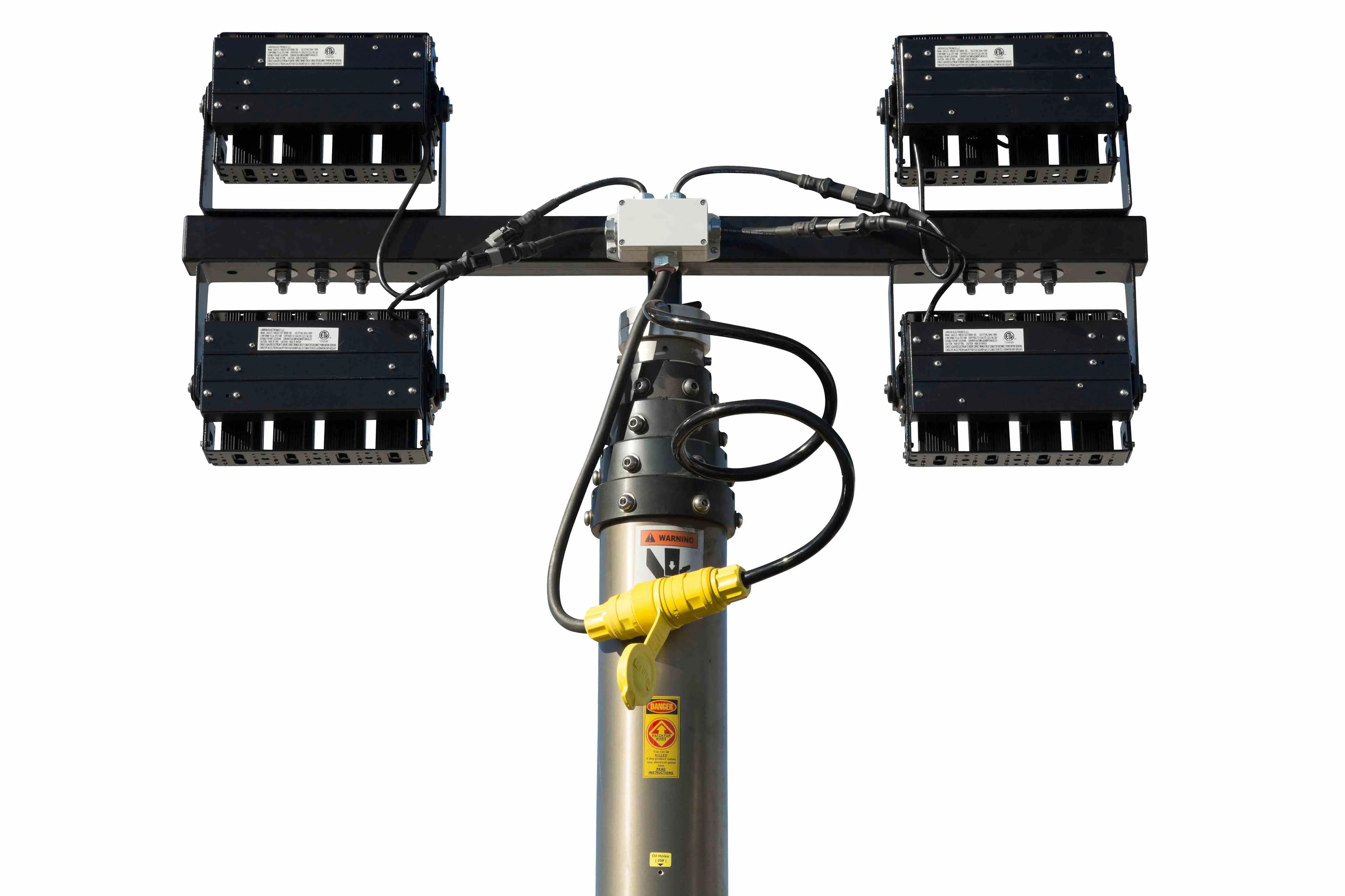

LED Lighting

• Lamp Type: Four 100-watt LED floodlights.
• Total Output: 54,000 lumens (13,500 lumens per lamp).
• Efficiency: 135 lumens per watt.
• Instant Illumination: No warm-up, instant response with motion sensor.

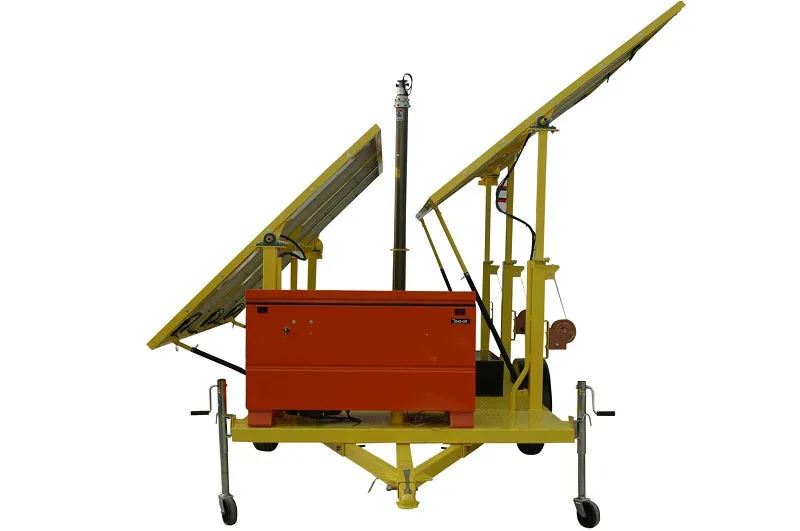

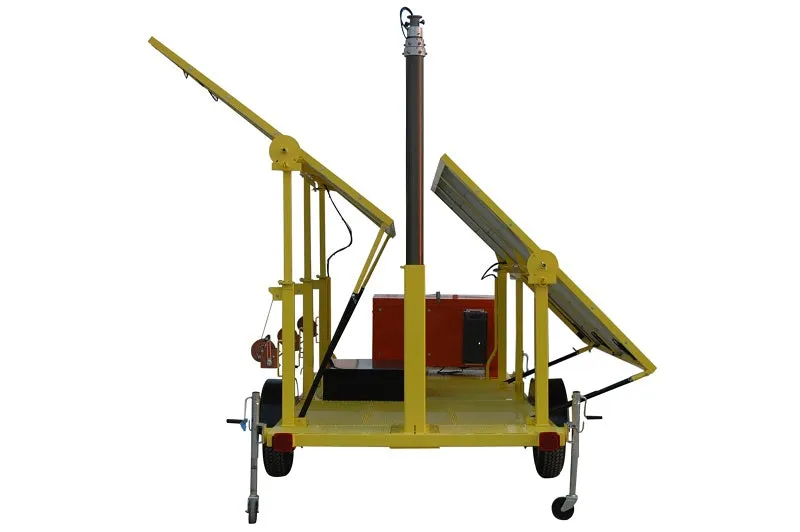

Trailer Specifications

• Dimensions: 16 feet L x 6 feet W.
• Axle: 3500 lbs-rated.
• Finish: Industrial-grade powder coating or 2-part epoxy.
• Safety Features: Electric brakes, breakaway device, safety chains.
• Outriggers: Four stabilizing outriggers with crank-style support legs.
• Hitch: Adjustable 3" pintle eye type hitch.

Control System

• Charge Controller: Outback Extreme MPPT series, with high-temperature tolerance.
• Cooling System: 1400 CFM fan, activates above 90°F.
• Motion Sensor: Three-way switch for manual, motion-sensor, and off settings.
• Monitoring: Outback Mate 3 for battery and system status tracking.

Customization

• Options for additional battery banks, generator integration, and various mounting fixtures.

Applications

This solar security light tower is suitable for:

• Remote security applications
• Construction sites, event areas, and parking lots
• Large area illumination for industrial and agricultural sites

Additional Information

• Environmental Resistance: Waterproof, rugged design for outdoor use.
• Transportability: Forklift skid pockets, eyelets for crane lifting, and road-compliant for easy relocation.
• Safety Compliance: DOT-compliant lighting and wiring.
