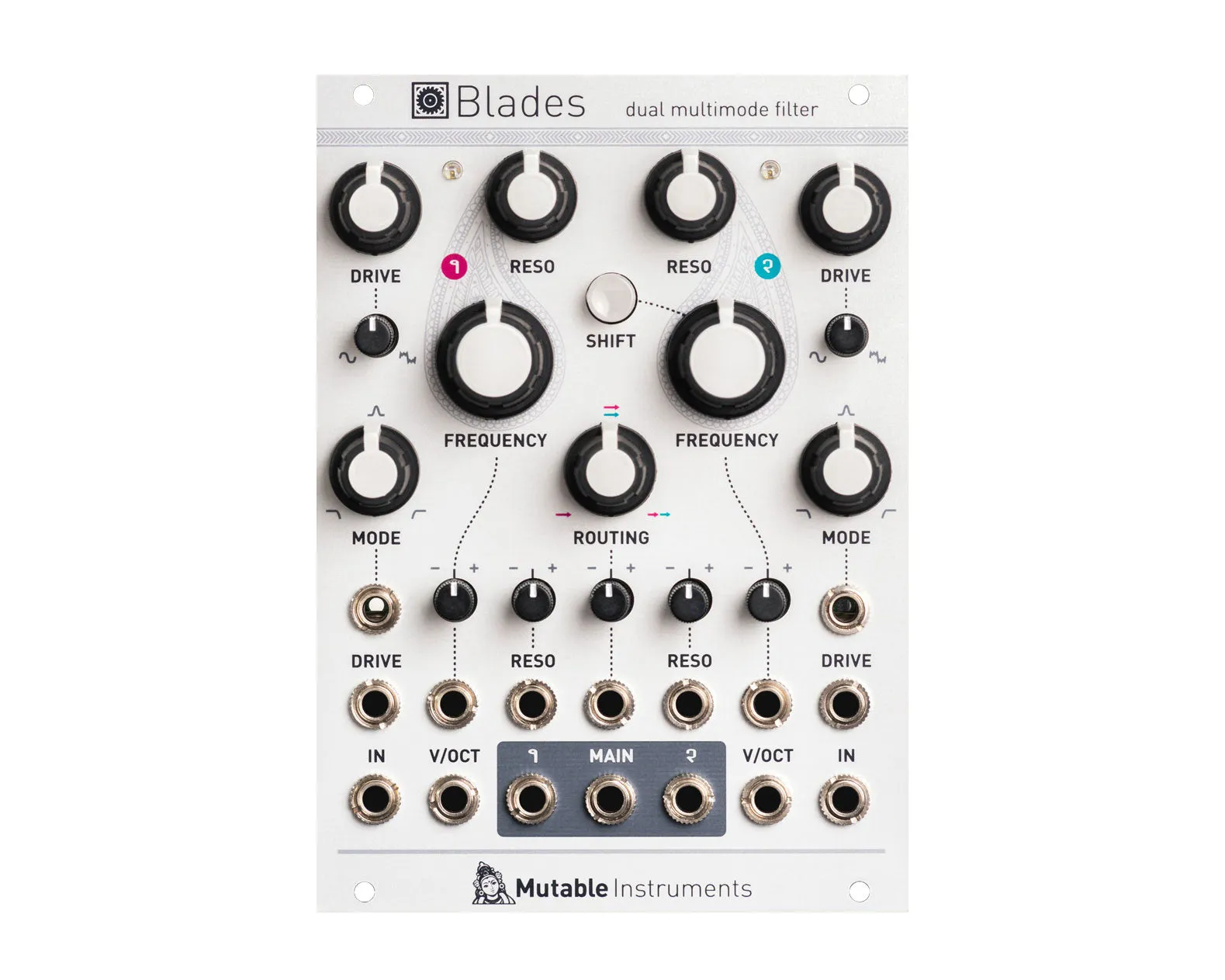

Blades is an 18hp dual analogue multimode filter with extensive CV control. Response of each filter is continuously variable between LP, BP and HP, with CV control. Each input can be overdriven or wavefolded, with CV control on the amount.

The routing between the filters (from single to parallel to series) is continuously variable, with CV control. The two filters can also be used independently, with an additional crossfaded output.

Through self-patching, the module can be used as a dual oscillator, or a voice (oscillator filter), with AM, PM, and exponential FM capabilities.

18-HP, 150mA 12V, 140mA -12V.

Video:

Product Specs

• Item Number: 16615
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Made In: France
• MPN: MI_BLADES
