| Product Attribute | Attribute Value |
|---|---|
| Application | Control Systems |
| For Use With | groov EPIC® System |
| Input Type | Digital |
| Mounting Type | DIN Rail |
| Number of Channels | 24 |
| Series | |
| Special Features | Lifetime Warranty |
| Wire Size | 14 - 28 AWG |
Overview

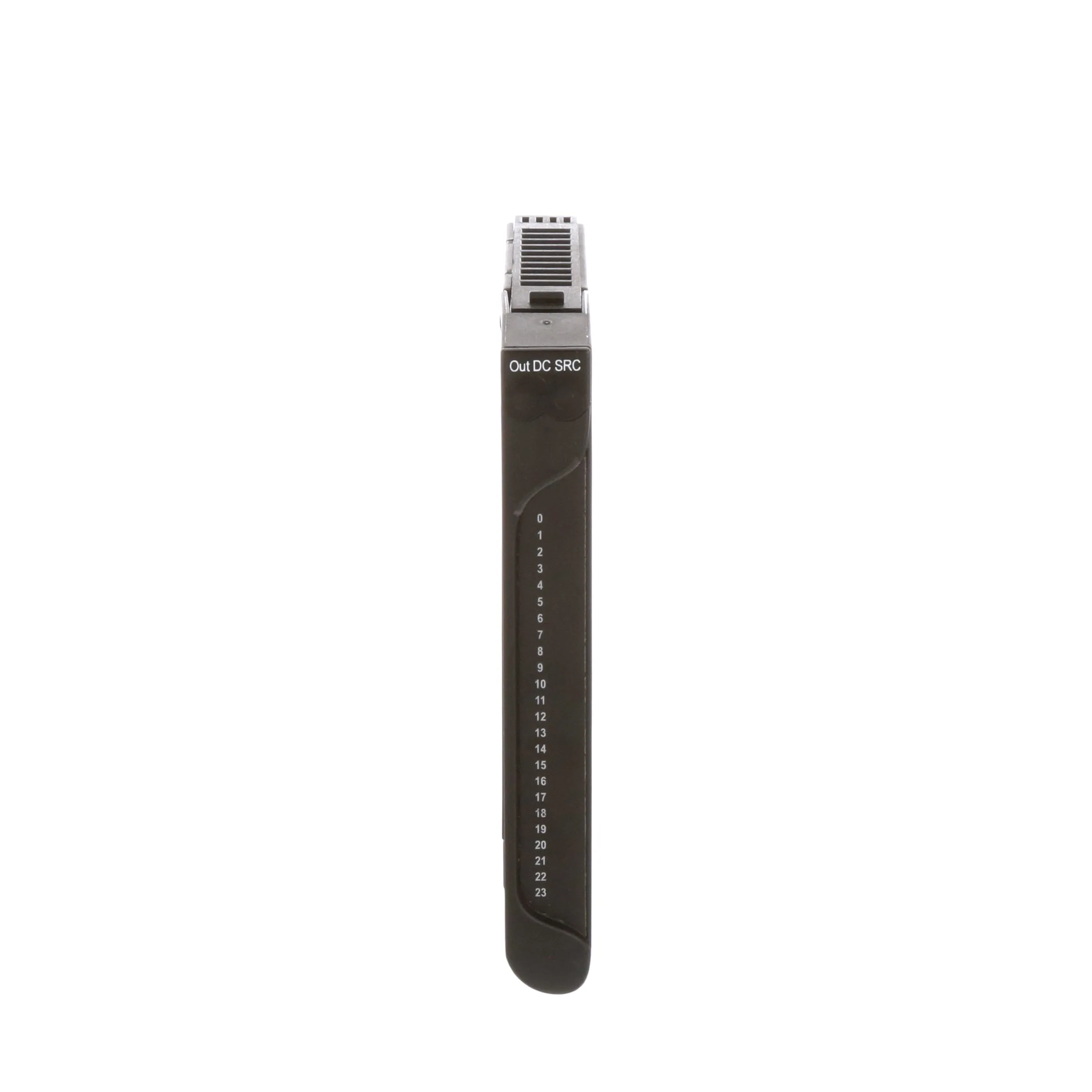

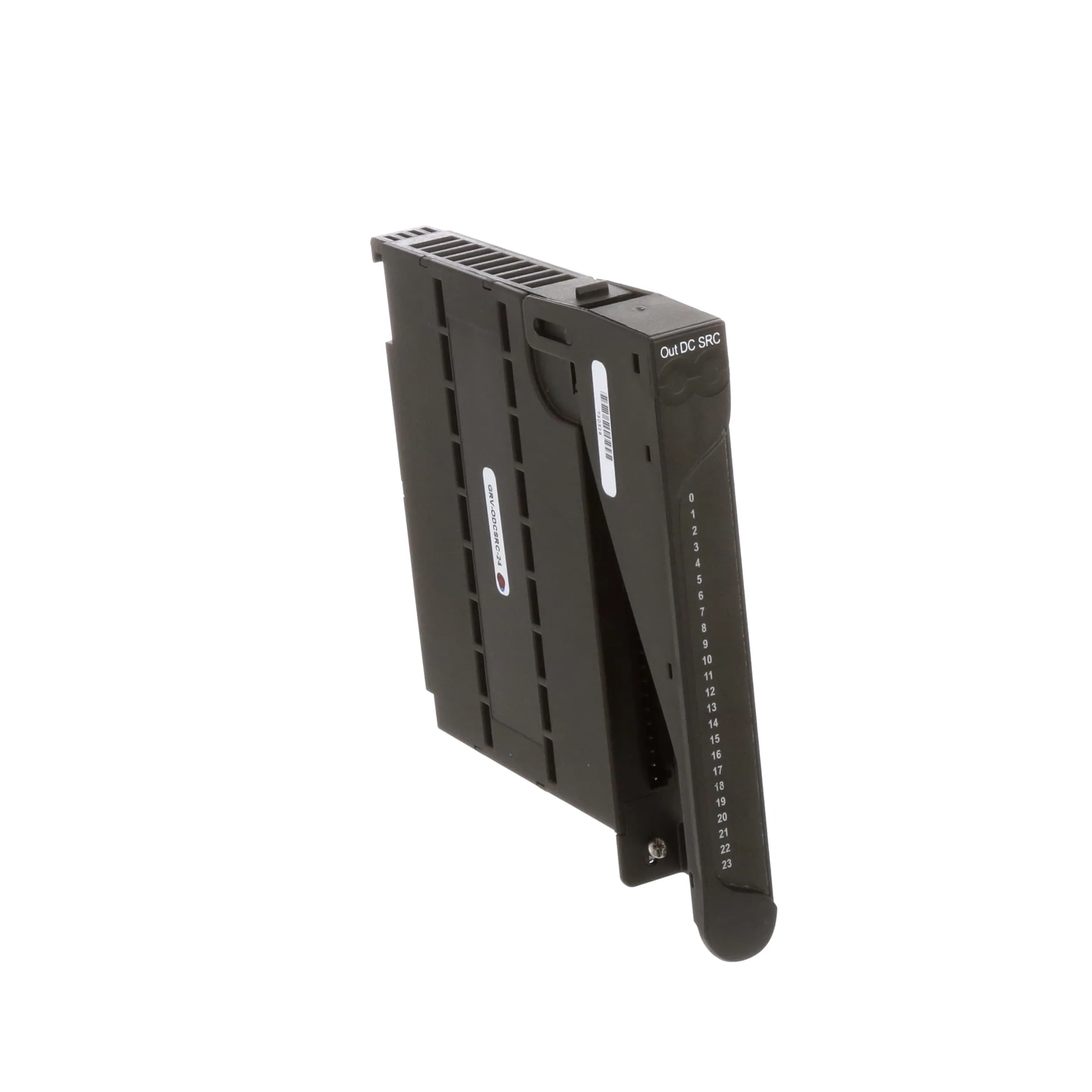

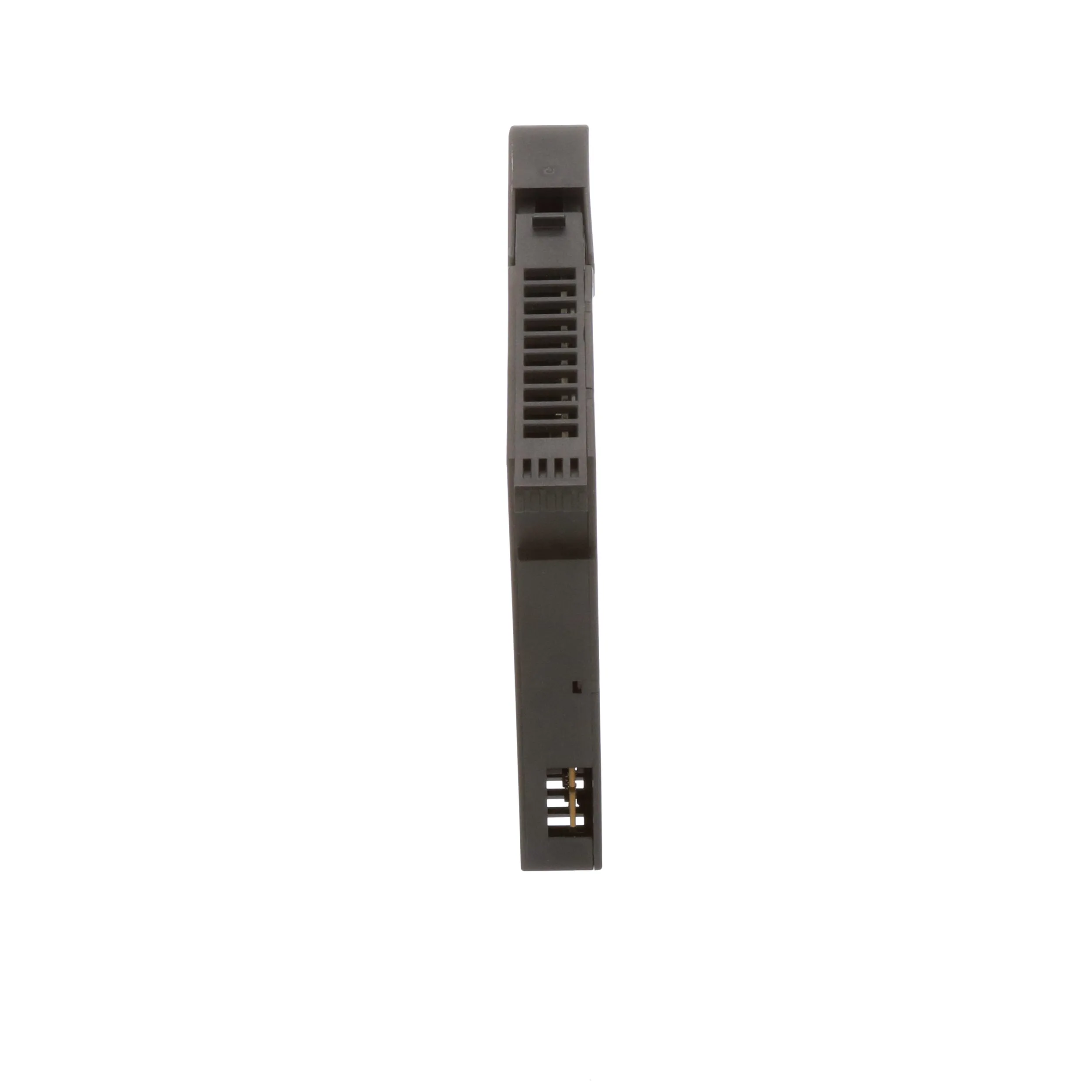

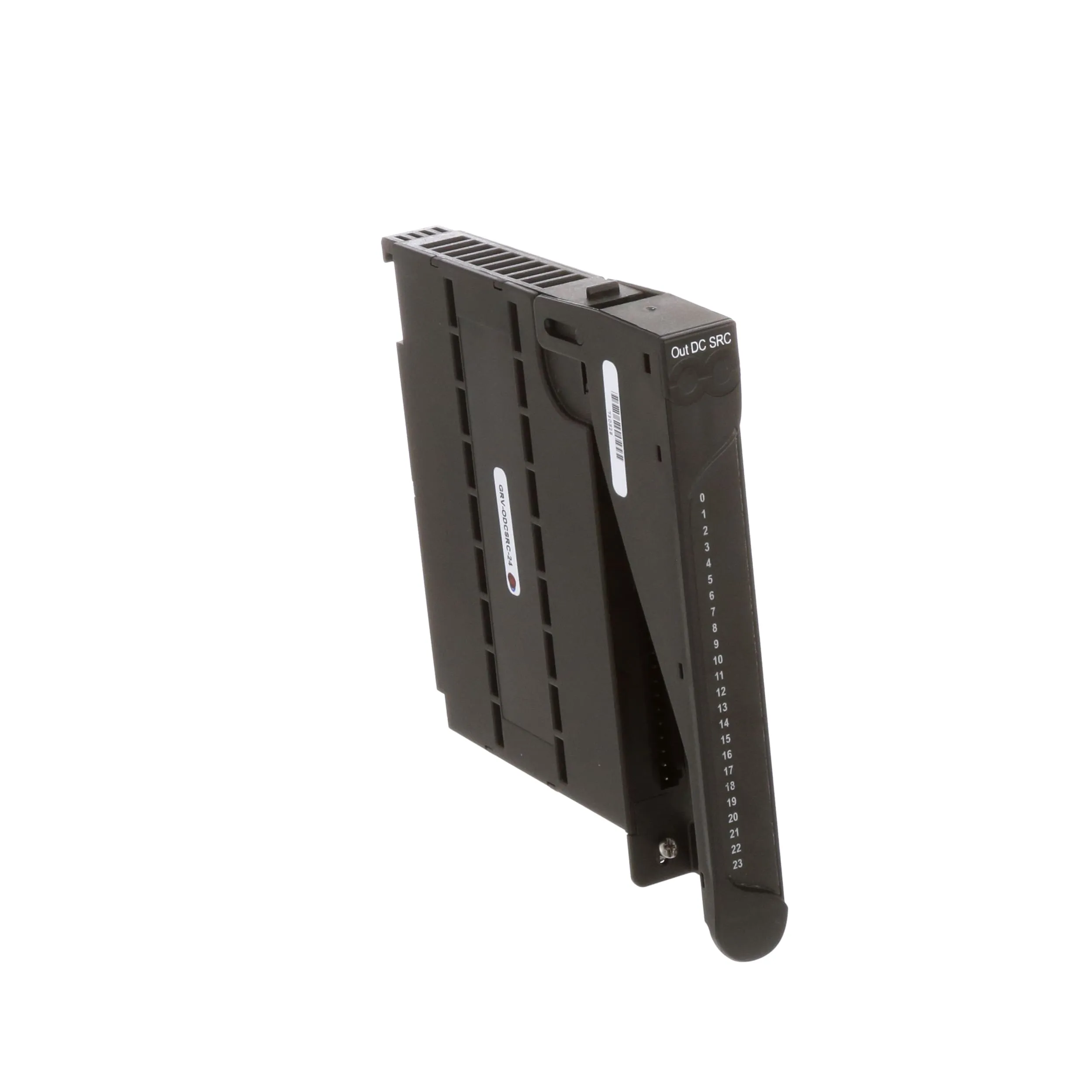

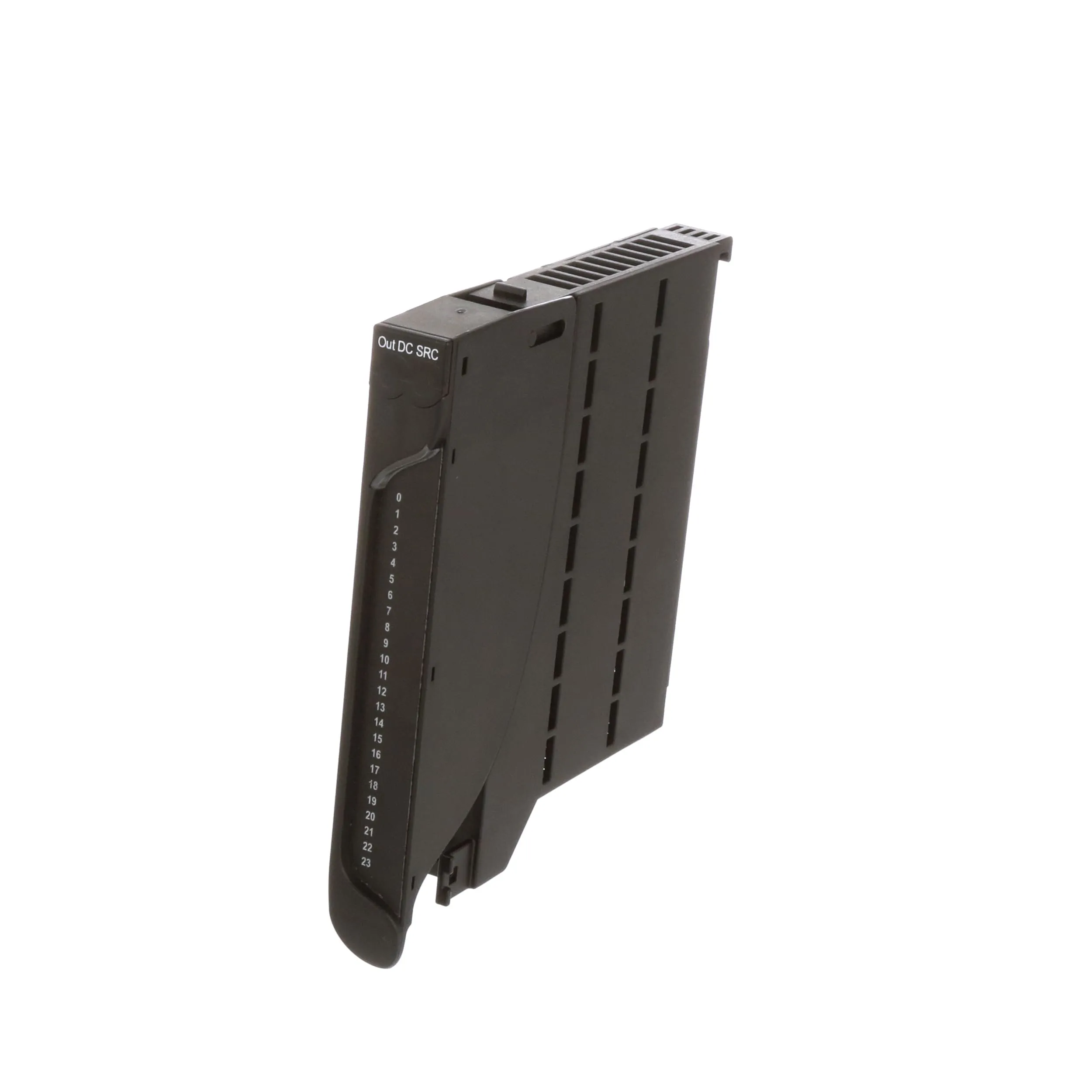

Opto22 groov EPIC Series — GRV-ODCSRC-24 | groov 24 Channel Discrete DC Sourcing Output Module:
The GRV-ODCSRC-24 is part of the groov EPIC® system. This digital DC output module has 24 channels, each of which can switch loads of 5-60 VDC. This module is load sourcing. (If you're unsure whether you need a sourcing module, see the sinking/sourcing demo.) The GRV-ODCSRC-24 mounts on a groov EPIC chassis with a GRV-EPIC-PR1 processor and additional discrete, analog, and serial groov I/O modules, providing the mix of signals you need.
***NOTE: If your project needs more than just on/off switching, see the GRV-ODCI-12 module, which includes totalizing, pulsing, and other features.
The GRV-ODCSRC-24 DC output module (source current to loads) provides 24 DC output channels in one groov module. The module can switch 5–60 VDC loads. Wiring is simplified with a top-mounted connector, which provides spring-clamp terminals for power, common, and field wiring. The connector is held in place by a single, captive retention screw but can be removed with the field wiring intact for wiring in advance or easier module field replacement.
Features:
